连续输出功率: 最大1.67kW
连续堵转扭矩: 最大3.38Nm
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||

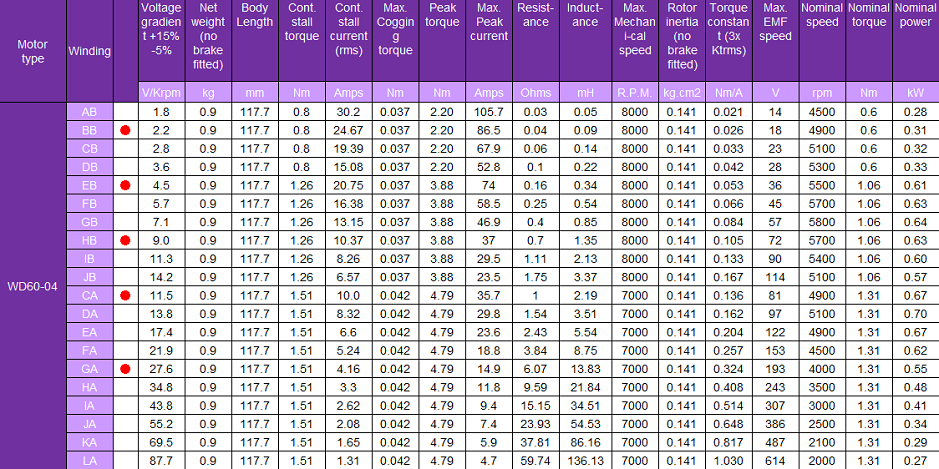

| WD60-04 | 0.9 | 117.7 | 1.51 | 0.042 | 8000 | 0.141 | 0.70 | |

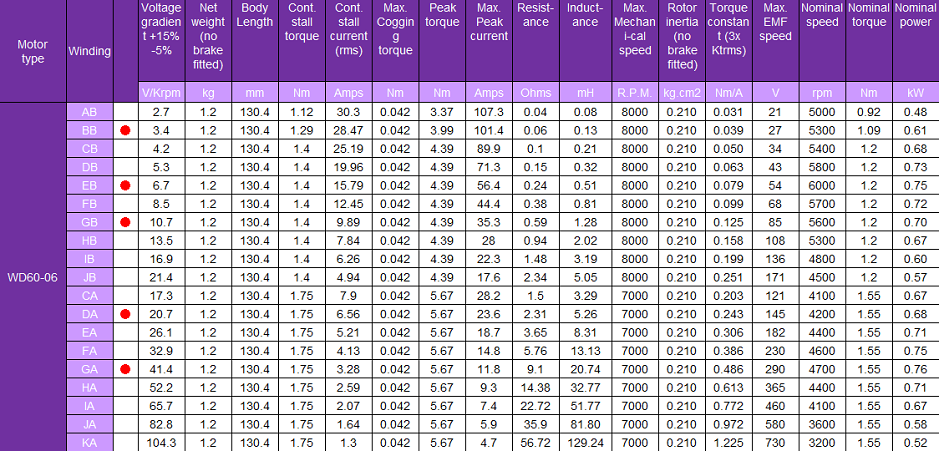

| WD60-06 | 1.2 | 130.4 | 1.75 | 0.042 | 8000 | 0.210 | 0.76 | |
| WD60-08 | 1.5 | 143.1 | 1.197 | 0.054 | 8000 | 0.279 | 0.93 | |

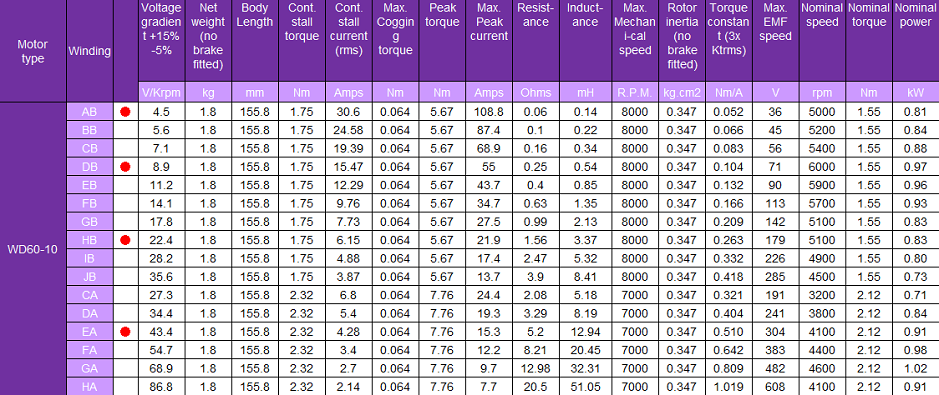

| WD60-10 | 1.8 | 155.8 | 2.32 | 0.064 | 8000 | 0.347 | 1.02 | |

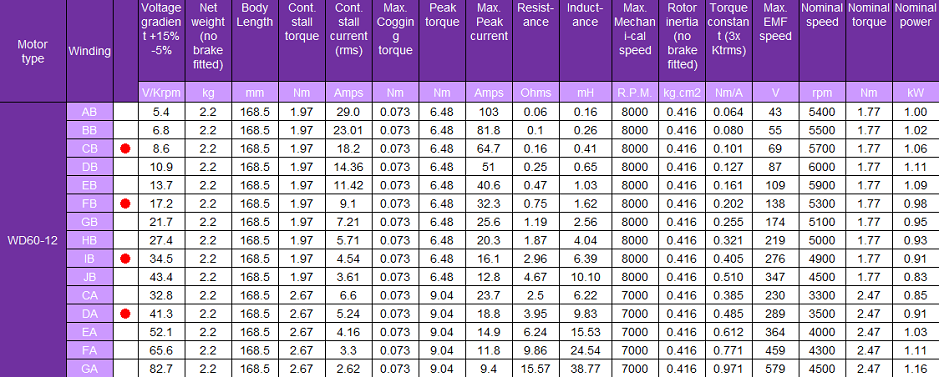

| WD60-12 | 2.2 | 168.5 | 2.67 | 0.073 | 8000 | 0.416 | 1.16 | |

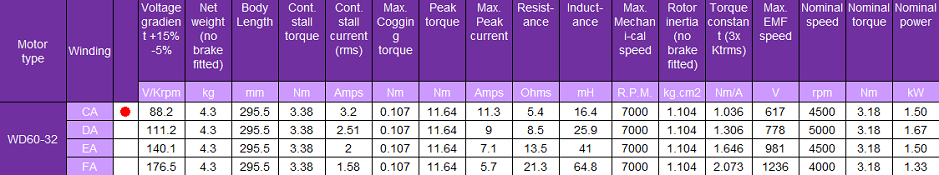

| WD60-32 | 4.3 | 295.5 | 3.38 | 0.107 | 7000 | 1.104 | 1.67 |
