连续输出功率: 最大3.79KW
连续堵转扭矩: 最大9.73Nm
电机可以安装编码器、测速机、抱闸、减速机
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | W | ||

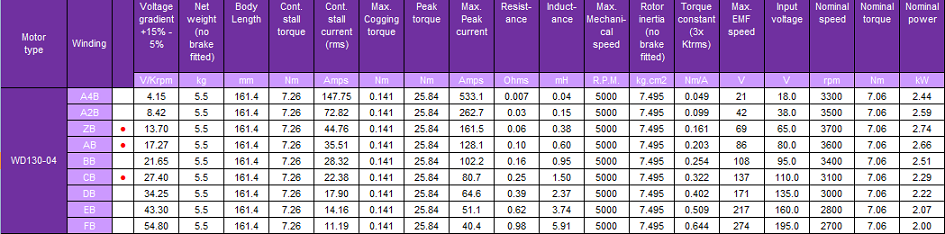

| WD130-04 | 5.50 | 161.40 | 7.26 | 0.141 | 5000 | 7.495 | 2740 | |

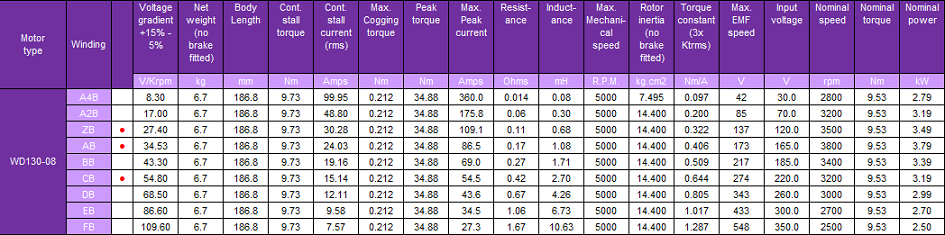

| WD130-08 | 6.70 | 186.80 | 9.73 | 0.21 | 5000 | 14.400 | 3790 |
