连续输出功率: 最大2.60kW
连续堵转扭矩: 最大5.85Nm
电机可以安装编码器、测速机、抱闸、减速机
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | W | ||

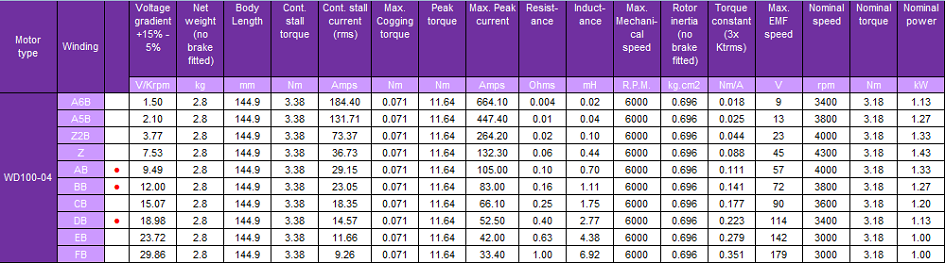

| WD100-04 | 2.80 | 114.90 | 3.38 | 0.071 | 6000 | 0.696 | 1430 | |

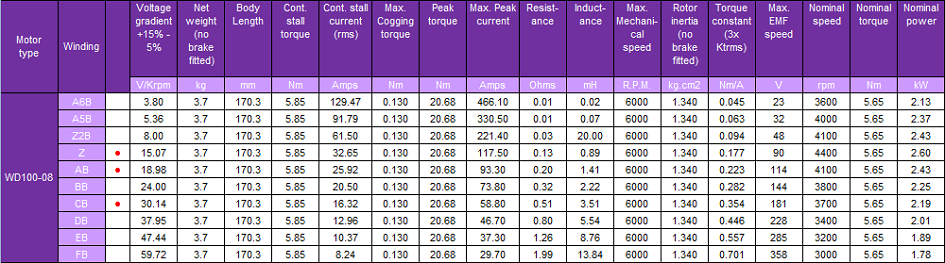

| WD100-08 | 3.70 | 170.30 | 5.85 | 0.130 | 6000 | 1.340 | 2600 |
