连续输出功率: 最大0.41kW
连续堵转扭矩: 最大1.12Nm
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||
| WD40-04 | 0.4 | 60.5 | 0.48 | 0.013 | 7000 | 0.029 | 0.14 | |

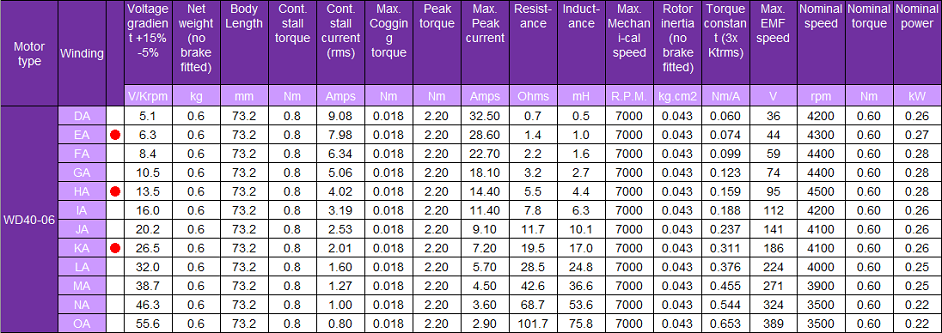

| WD40-06 | 0.6 | 73.2 | 0.80 | 0.018 | 7000 | 0.043 | 0.28 | |

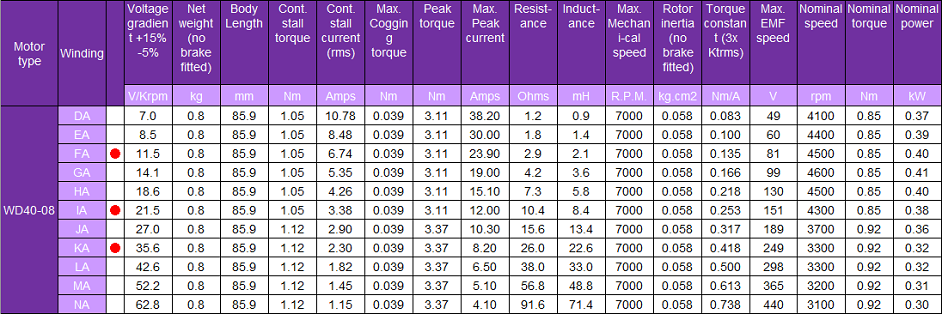

| WD40-08 | 0.8 | 85.9 | 1.12 | 0.039 | 8000 | 0.058 | 0.41 |
