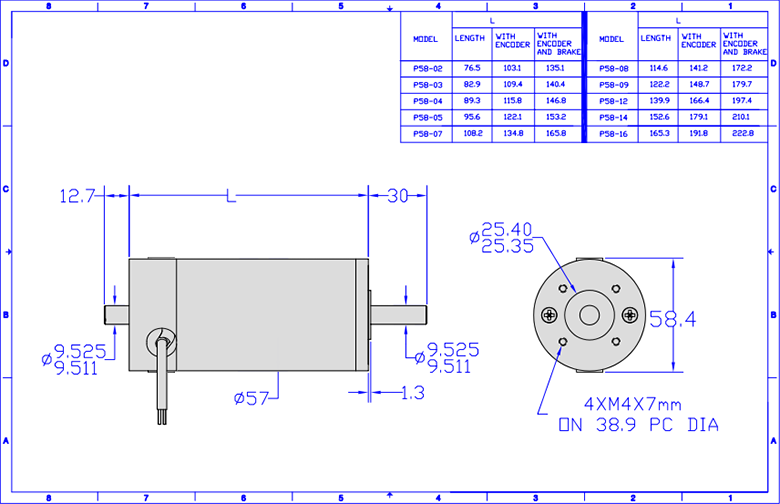

Dimension: 58mm, (NEMA 23)
Continuous Output Power: Max. 160W
Cont. stall torque : Max. 0.48Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor.
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

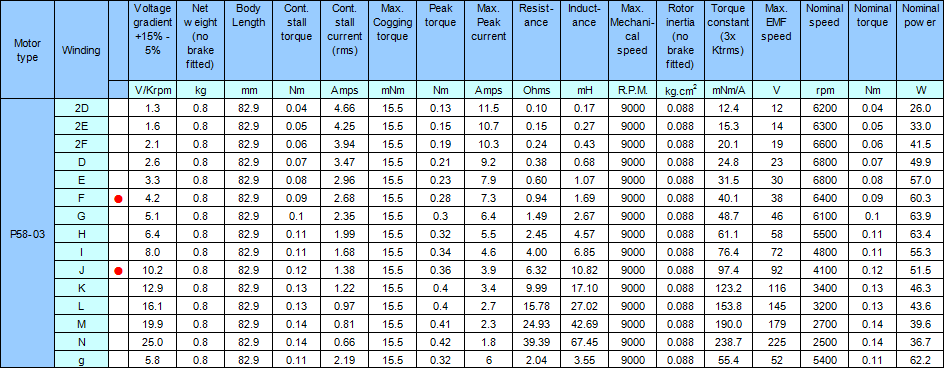

| P58-03 | 0.8 | 82.9 | 0.1 | 15.5 | 0.3 | 9000 | 0.09 | 63.9 | |
| P58-04 | 0.9 | 89.2 | 0.13 | 25.4 | 0.4 | 9000 | 0.19 | 65.4 | |

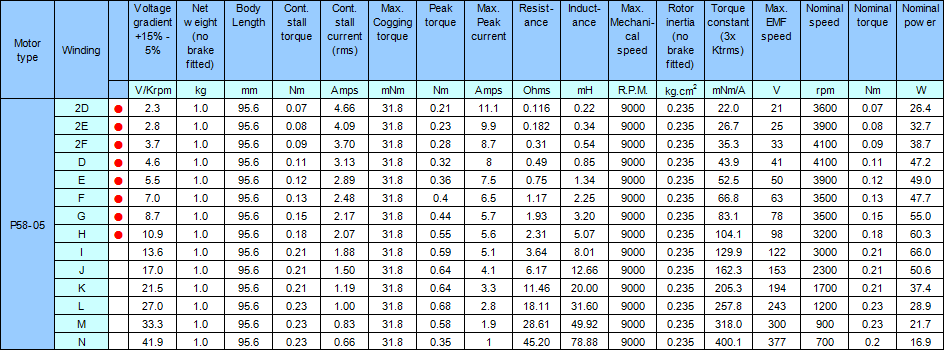

| P58-05 | 1.0 | 95.6 | 0.21 | 31.8 | 0.59 | 9000 | 0.24 | 66.0 | |

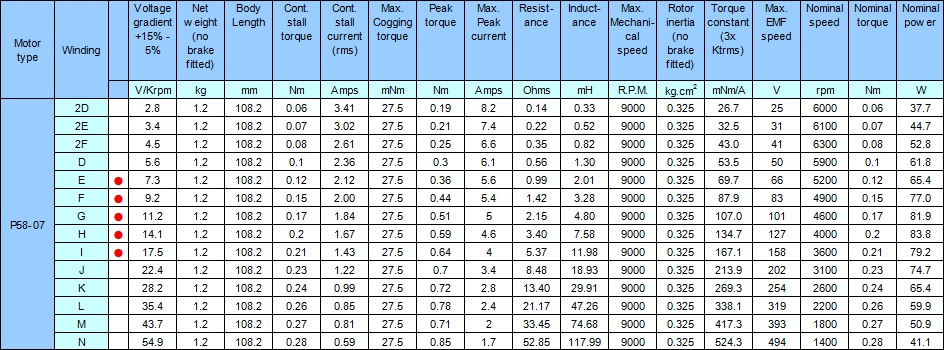

| P58-07 | 1.2 | 108.2 | 0.2 | 27.5 | 0.59 | 9000 | 0.33 | 83.8 | |

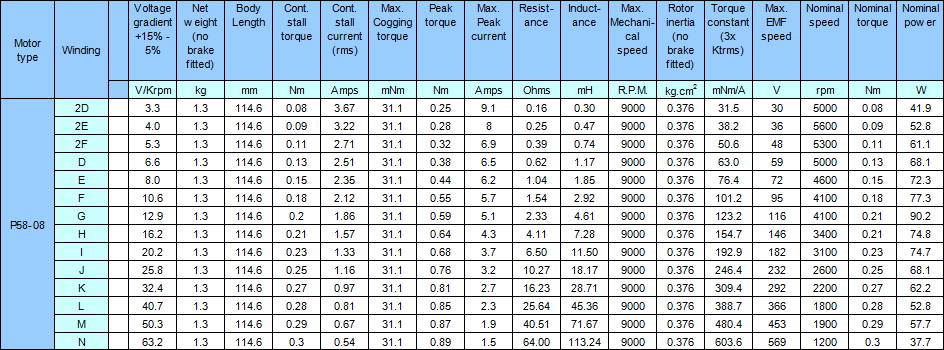

| P58-08 | 1.3 | 114.6 | 0.2 | 31.1 | 0.59 | 9000 | 0.38 | 90.2 | |

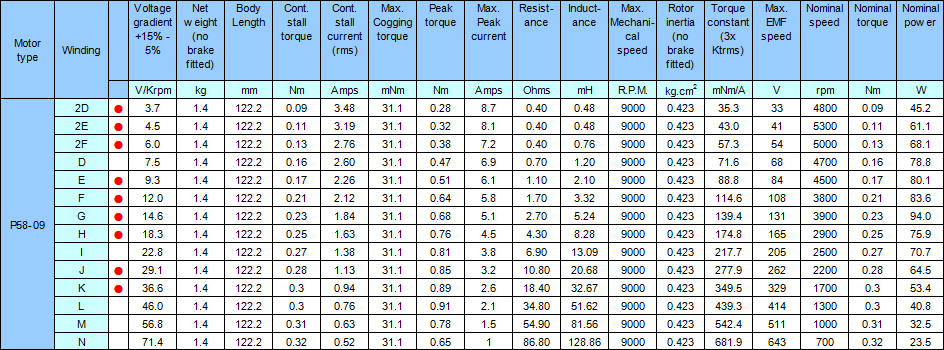

| P58-09 | 1.4 | 122.2 | 0.23 | 31.1 | 0.68 | 9000 | 0.42 | 94.0 | |

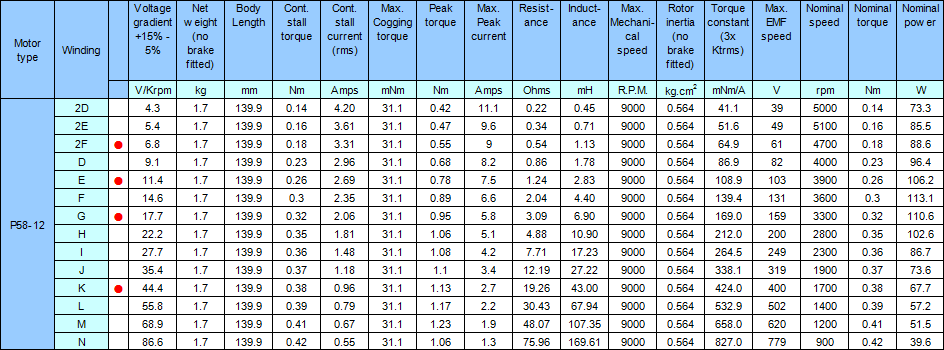

| P58-12 | 1.7 | 139.9 | 0.3 | 31.1 | 0.89 | 9000 | 0.56 | 113.1 | |

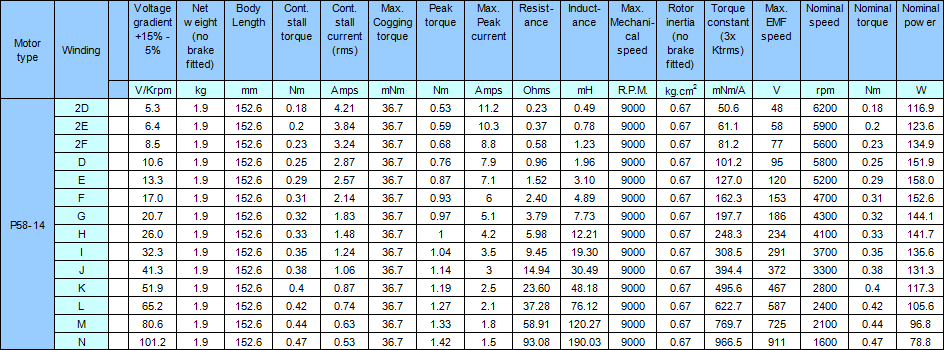

| P58-14 | 1.9 | 152.6 | 0.29 | 36.7 | 0.87 | 9000 | 0.67 | 158.0 | |

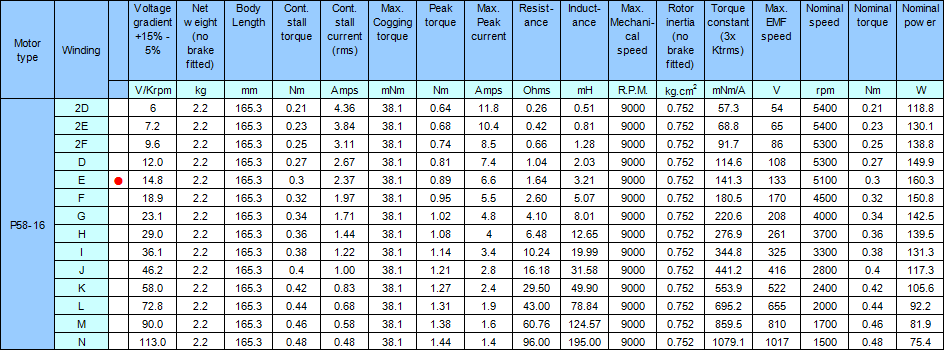

| P58-16 | 2.2 | 165.3 | 0.3 | 38.1 | 0.89 | 9000 | 0.75 | 160.3 |
