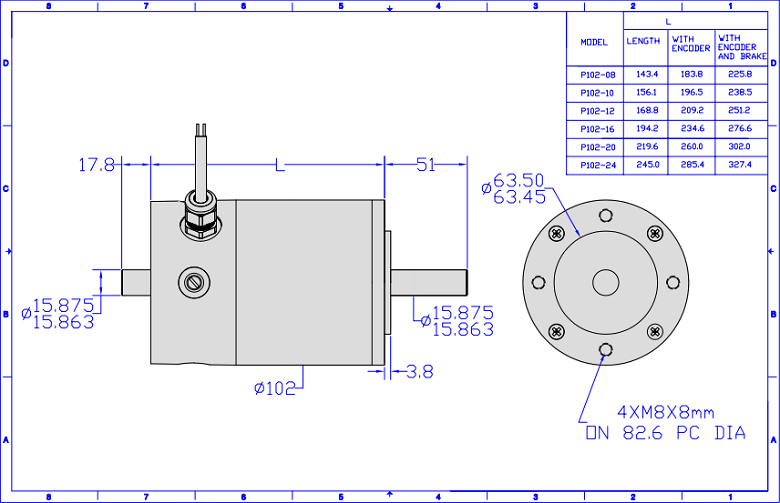

Dimension: 102mm, (NEMA 40)
Continuous Output Power: Max. 626W
Cont. stall torque : Max. 4.1Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

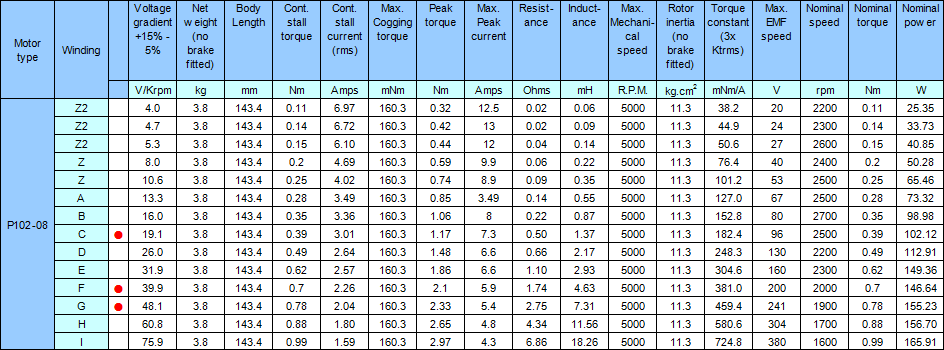

| P102-08 | 3.8 | 143.4 | 0.99 | 160.3 | 2.97 | 5000 | 11.30 | 165.9 | |
| P102-10 | 4.4 | 156.1 | 1.77 | 184.3 | 5.3 | 5000 | 14.13 | 296.8 | |

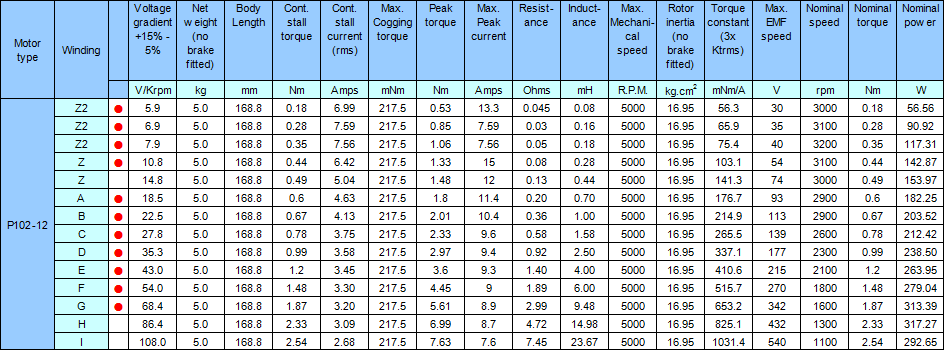

| P102-12 | 5.0 | 168.8 | 2.33 | 217.5 | 6.99 | 5000 | 16.95 | 317.3 | |

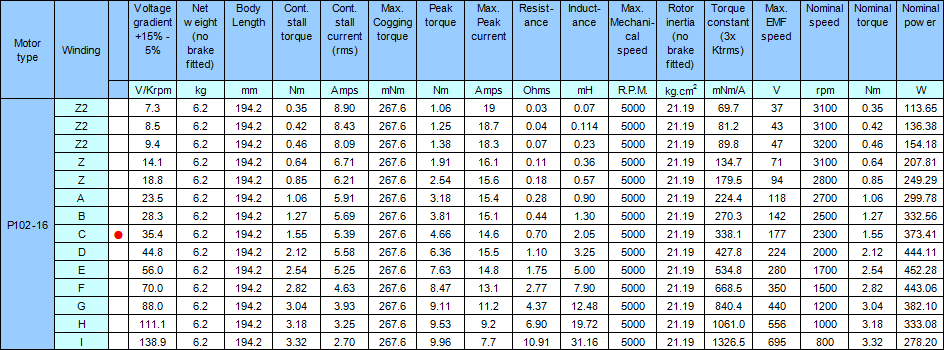

| P102-16 | 6.2 | 194.2 | 2.54 | 267.6 | 7.63 | 5000 | 21.19 | 452.3 | |

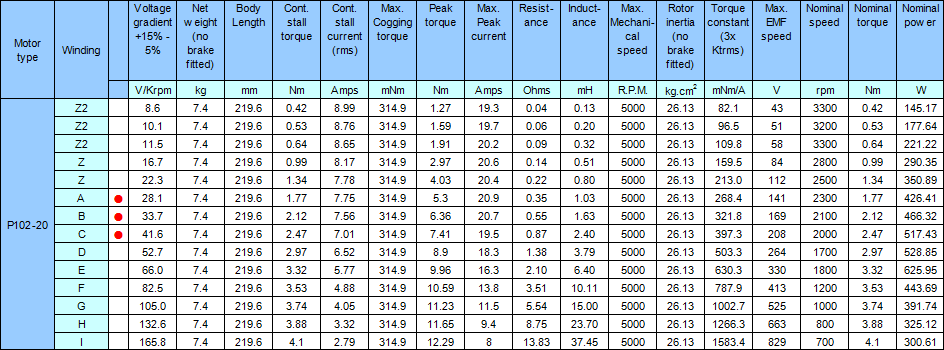

| P102-20 | 7.4 | 219.6 | 3.32 | 314.9 | 9.96 | 5000 | 26.13 | 626.0 |
