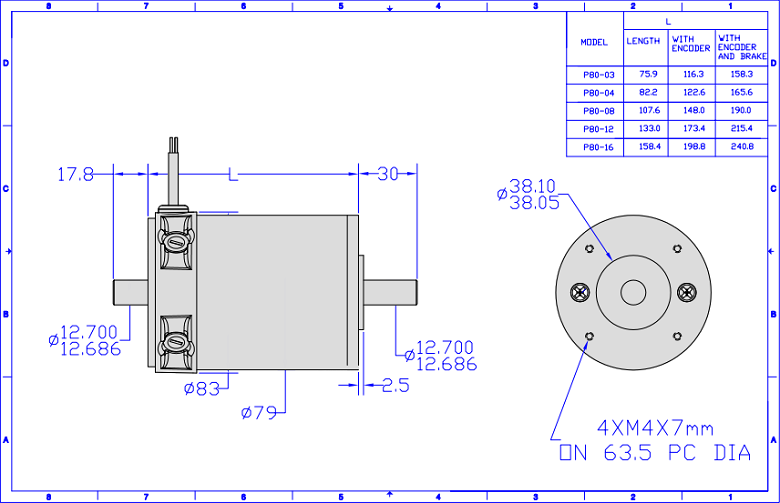

Dimension: 80mm, (NEMA 33)
Continuous Output Power: Max. 151W
Cont. stall torque : Max. 0.85Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor.
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

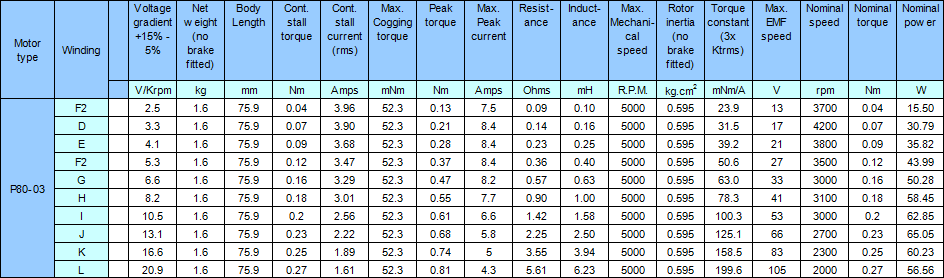

| P80-03 | 1.6 | 75.9 | 0.23 | 52.3 | 0.68 | 5000 | 0.60 | 65.1 | |

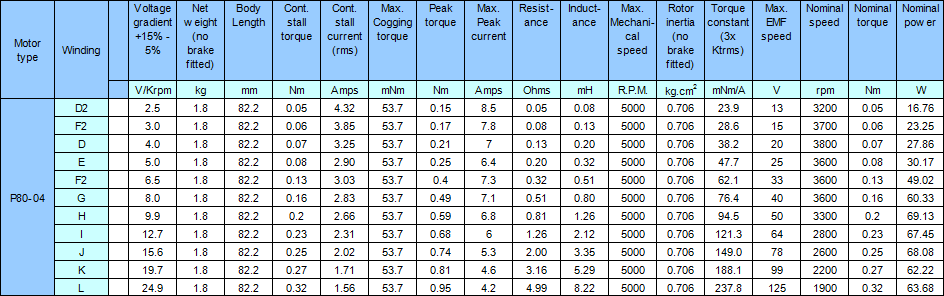

| P80-04 | 1.8 | 82.2 | 0.2 | 53.7 | 0.59 | 5000 | 0.71 | 69.1 | |
| P80-08 | 2.3 | 107.6 | 0.39 | 65.7 | 1.17 | 5000 | 1.41 | 122.6 | |

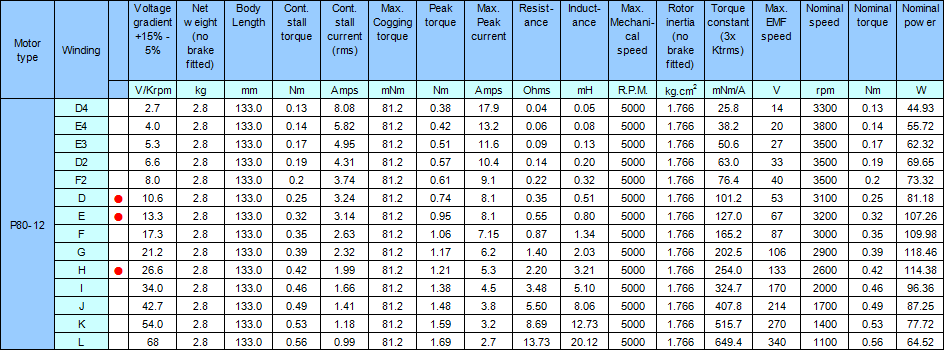

| P80-12 | 2.8 | 133.0 | 0.39 | 81.2 | 1.17 | 5000 | 1.77 | 118.5 | |

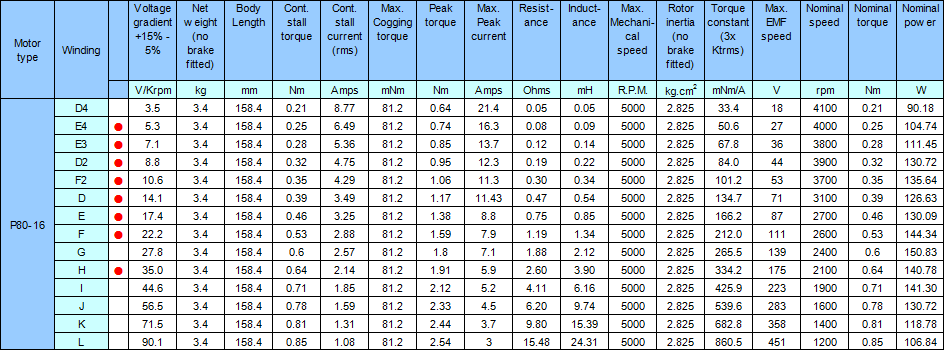

| P80-16 | 3.4 | 158.4 | 0.6 | 81.2 | 1.8 | 5000 | 2.83 | 150.8 |
