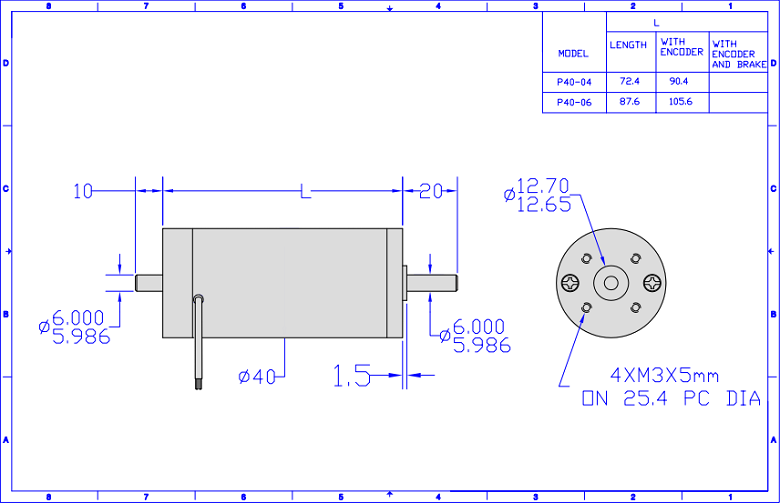

Dimension: 40mm, (NEMA 15).
Continuous Output Power: Max. 38W.
Cont. stall torque: Max. 0.07Nm.
Encoder, Tacho, Brake, Gearbox can be added to the motor.
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

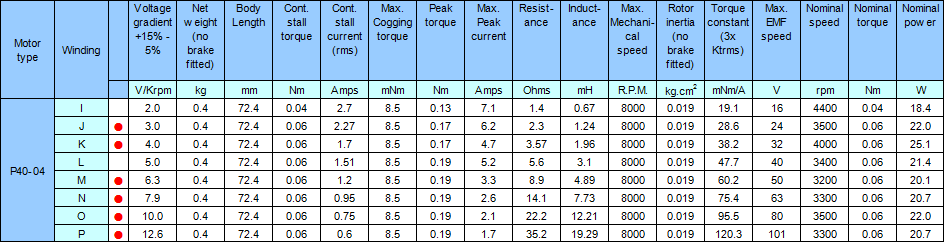

| P40-04 | 0.4 | 72.4 | 0.06 | 8.5 | 0.17 | 8000 | 0.02 | 25.1 | |

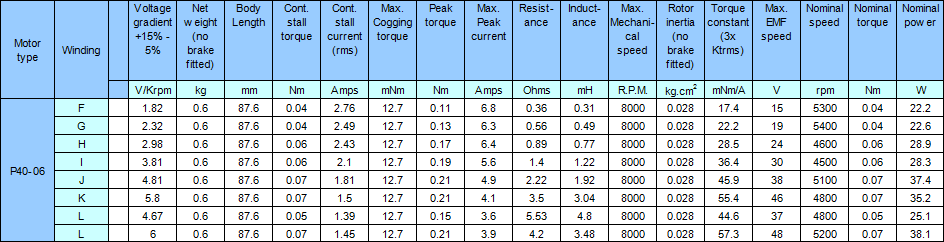

| P40-06 | 0.6 | 87.6 | 0.07 | 12.7 | 0.21 | 8000 | 0.03 | 38.1 |
