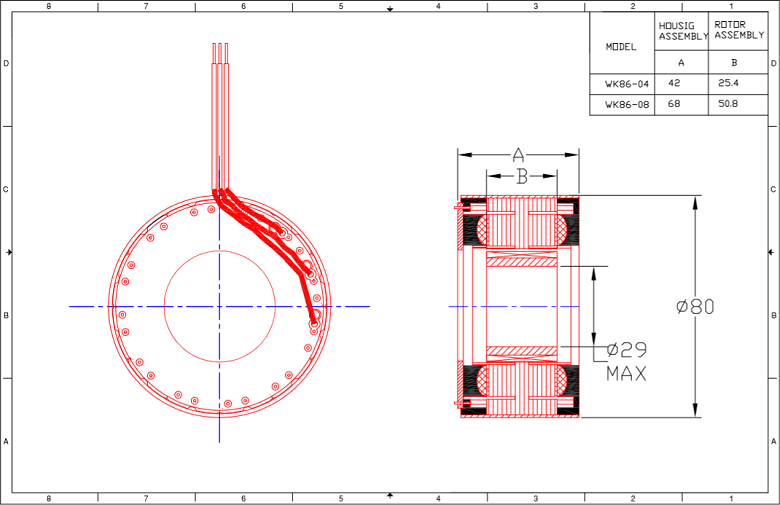

Dimension: Stator O.D. 80.0mm, Rotor Max I.D. 29.0mm
Continuous Output Power: Max. 1.626KW
Cont. stall torque : Max. 5.10Nm

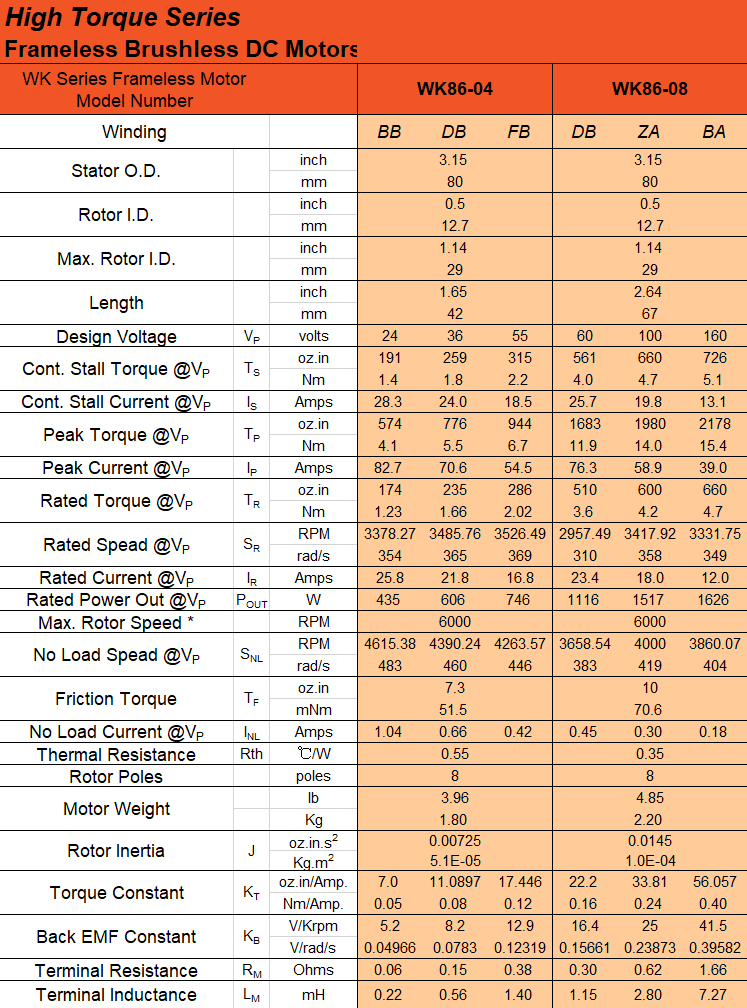

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK86-04 | 1.80 | 42.00 | 2.20 | 51.50 | 6000 | 0.51 | 746 | |
| WK86-08 | 2.20 | 67.00 | 5.10 | 70.60 | 6000 | 1.02 | 1626 |
