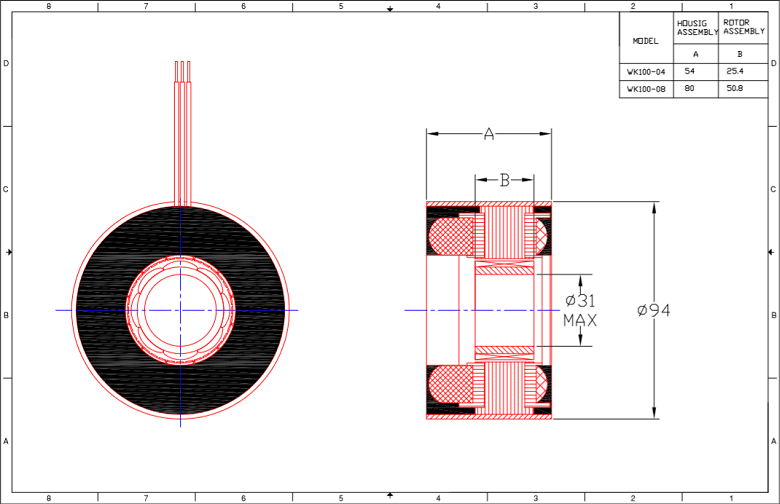

Dimension: Stator O.D. 94.0mm, Rotor Max I.D. 31.0mm
Continuous Output Power: Max. 1.782KW
Cont. stall torque : Max. 6.60Nm

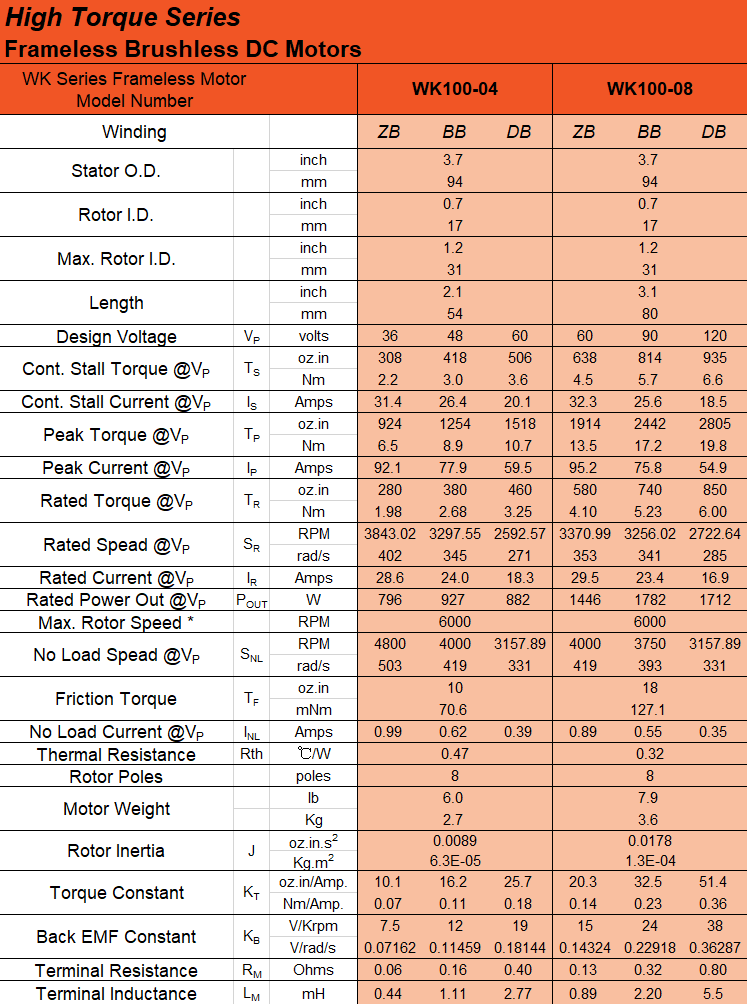

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK100-04 | 2.70 | 54.00 | 3.00 | 70.60 | 6000 | 0.63 | 927 | |
| WK100-08 | 3.60 | 80.00 | 5.70 | 127.10 | 6000 | 1.30 | 1782 |
