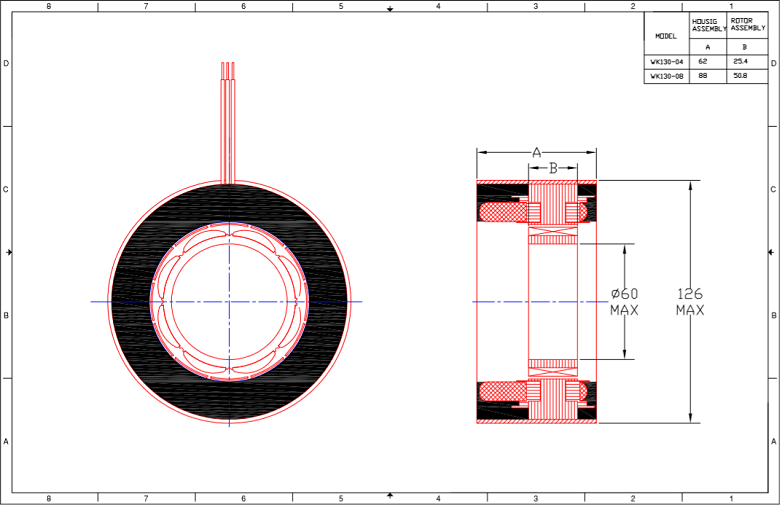

Dimension: Stator O.D. 126.0mm, Rotor Max I.D. 60.0mm
Continuous Output Power: Max. 4.065KW
Cont. stall torque : Max. 10.90Nm

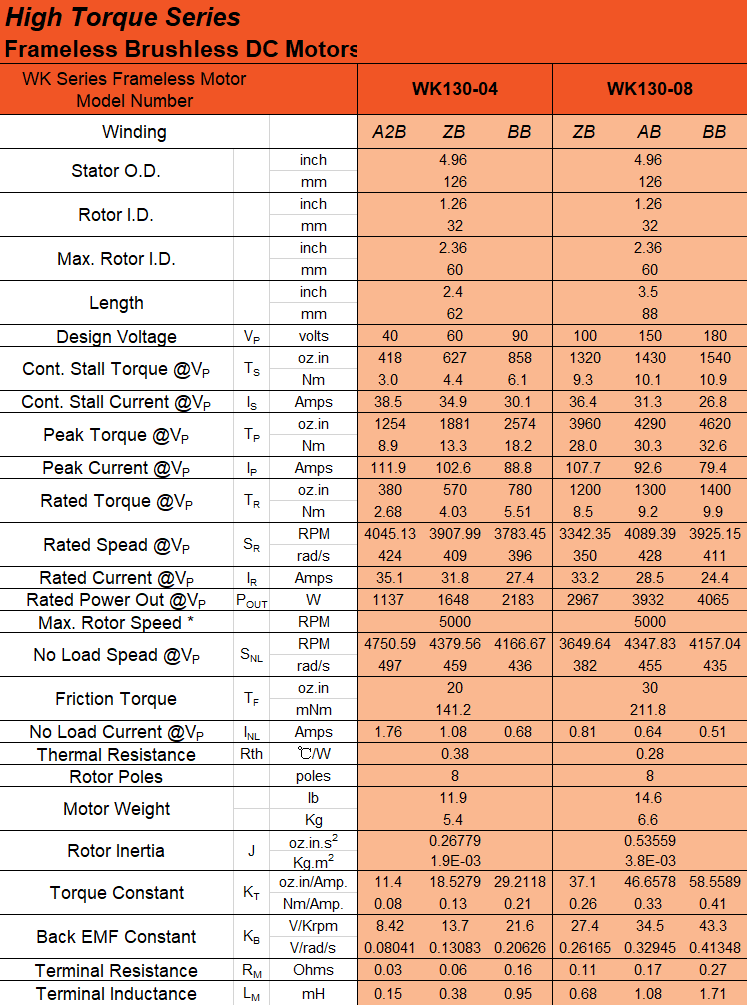

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK130-04 | 5.40 | 62.00 | 6.10 | 141.20 | 6000 | 18.91 | 2183 | |
| WK130-08 | 6.60 | 88.00 | 10.90 | 211.80 | 6000 | 37.82 | 4065 |
