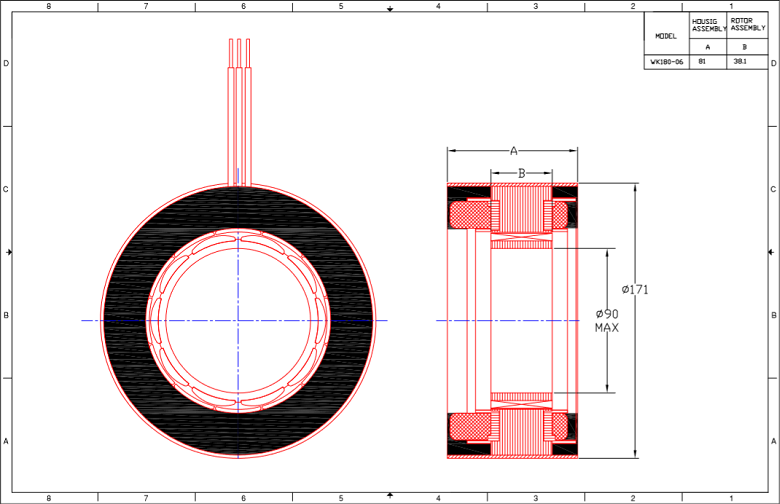

Dimension: Stator O.D. 171.3mm, Rotor Max I.D. 90.0mm
Continuous Output Power: Max. 8.085KW
Cont. stall torque : Max. 20.40Nm

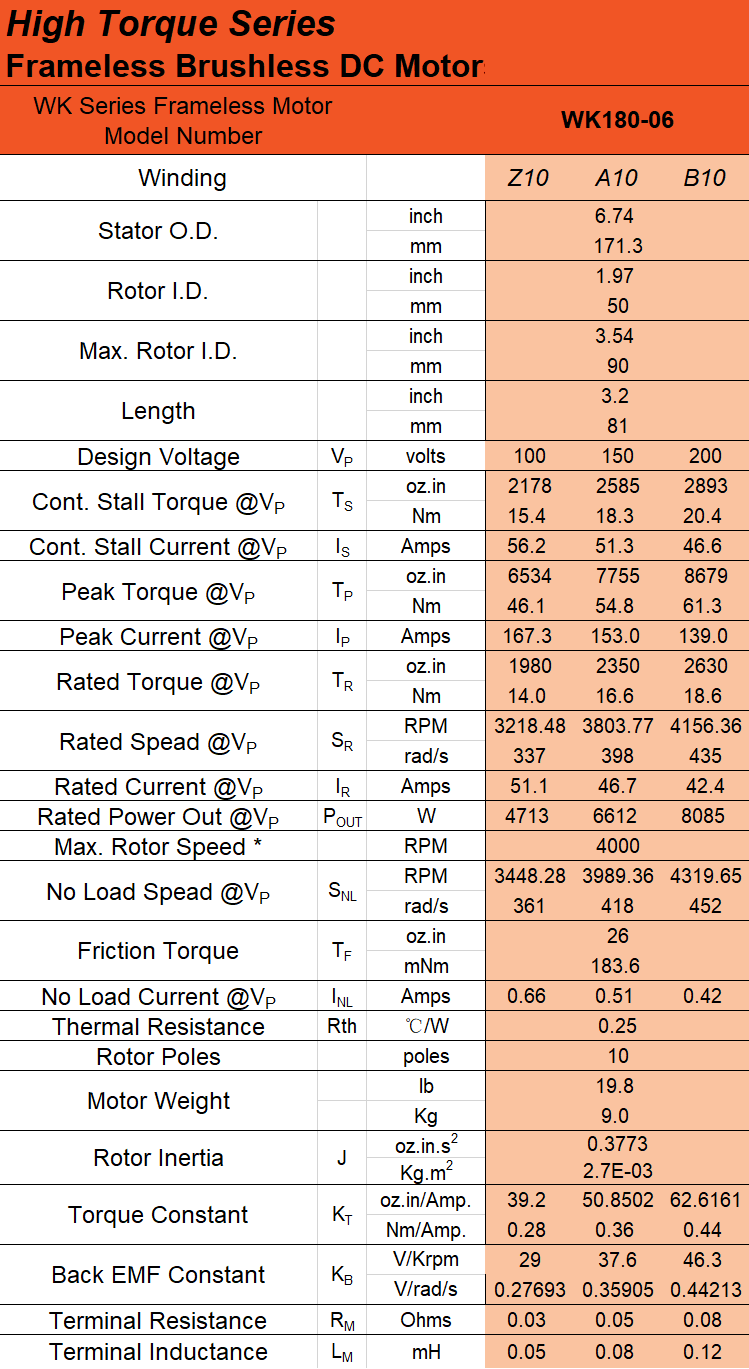

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK180-06 | 9.00 | 81.00 | 20.40 | 183.60 | 4000 | 26.64 | 8085 |
