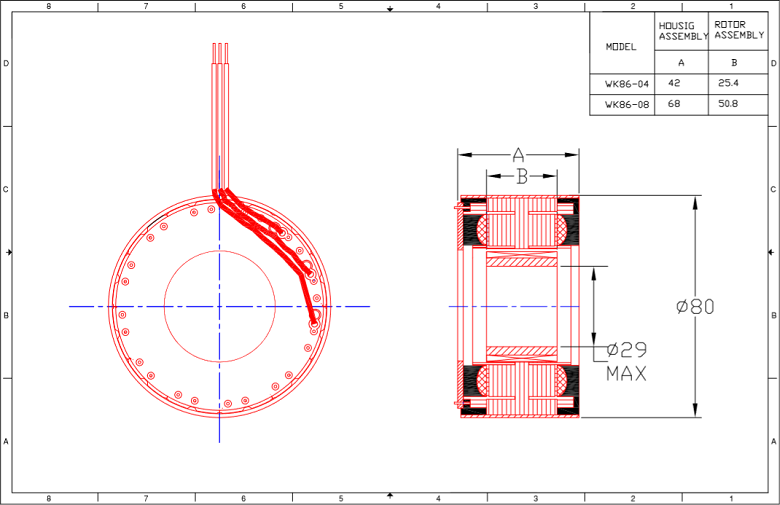

尺寸参数：定子外径 80.0mm，转子内孔最大 29.0mm
连续输出功率: 最大1.626KW
连续堵转扭矩: 最大5.10Nm

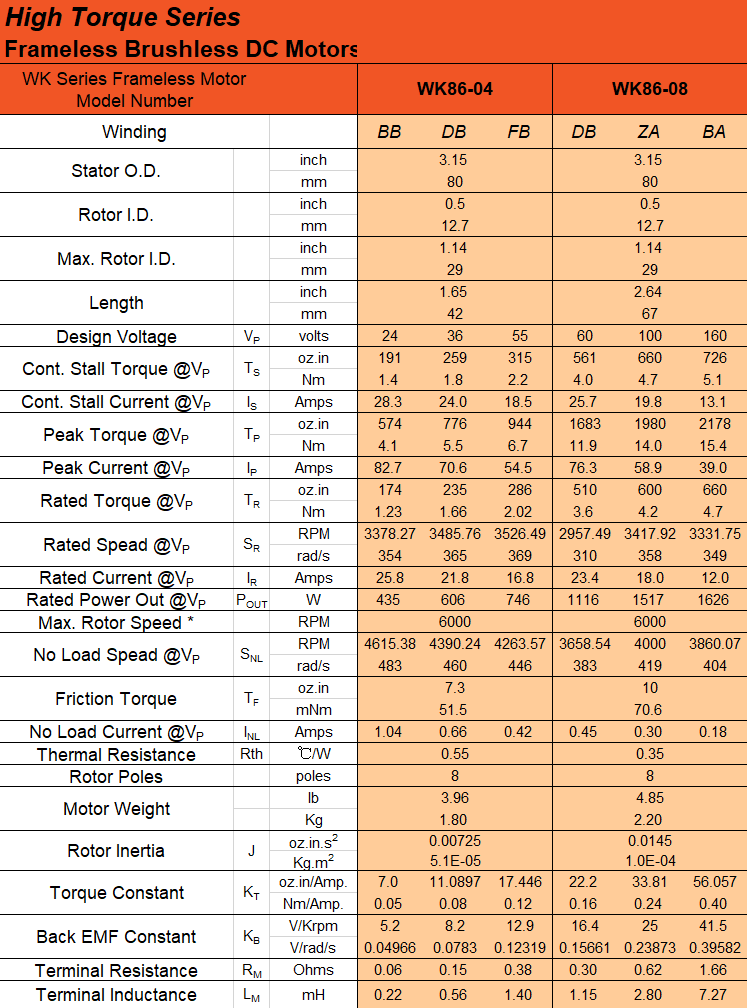

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK86-04 | 1.80 | 42.00 | 2.20 | 51.50 | 6000 | 0.51 | 746 | |
| WK86-08 | 2.20 | 67.00 | 5.10 | 70.60 | 6000 | 1.02 | 1626 |
