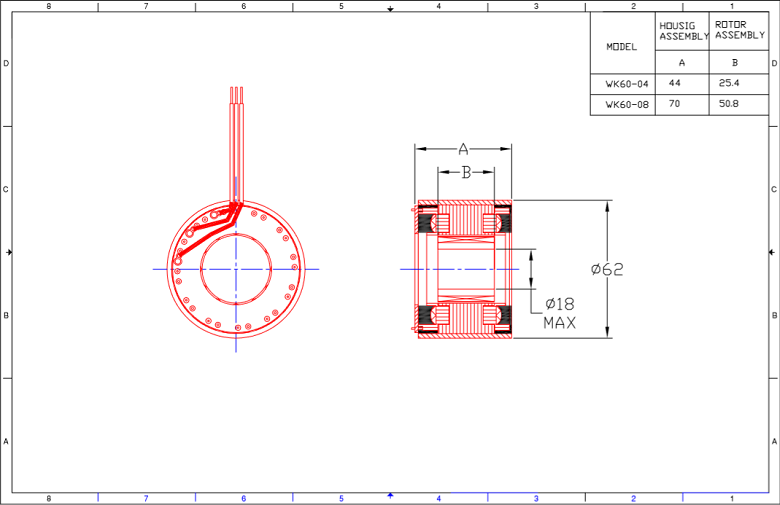

尺寸参数：定子外径 62mm，转子内孔最大 18mm
连续输出功率: 最大619W
连续堵转扭矩: 最大1.70Nm

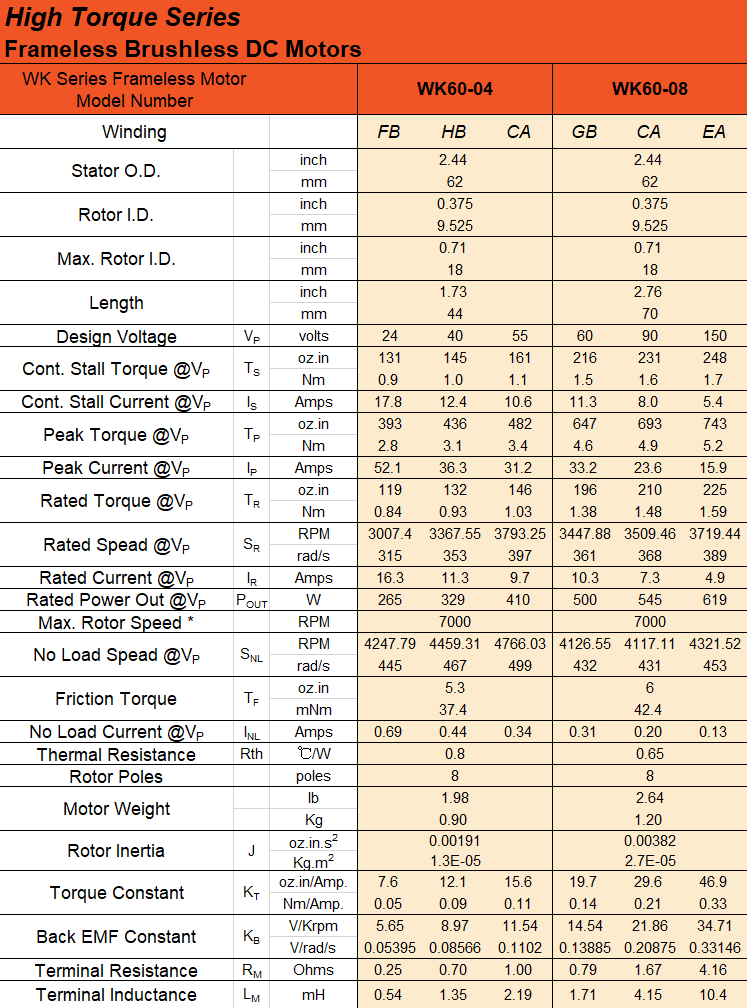

| Motor type |
weight | Body Length | Cont. stall torque |
Friction Torque |
Max. Mechani-cal speed |
Rotor inertia | Max. power | Detail |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | R.P.M. | kg.cm2 | W | ||
| WK60-04 | 0.90 | 44.00 | 1.10 | 37.4 | 7000 | 0.13 | 410 | |
| WK60-08 | 1.20 | 70.00 | 1.70 | 42.40 | 7000 | 0.27 | 619 |
