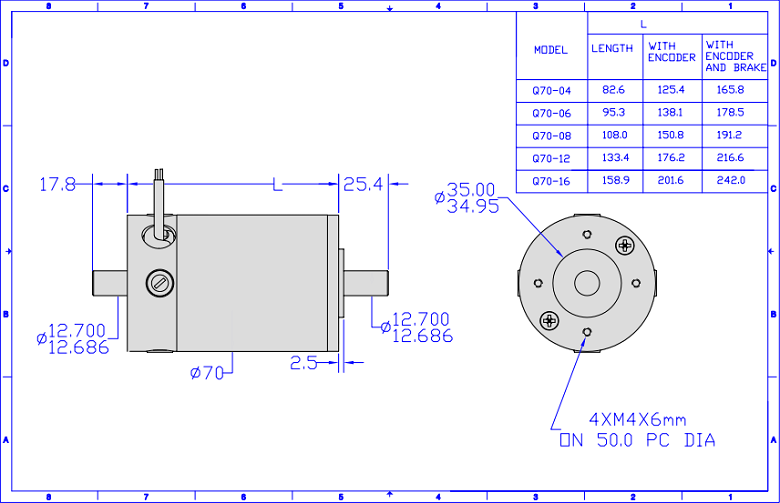

Dimension: 70mm, (NEMA 28)
Continuous Output Power: Max. 207W
Cont. stall torque : Max. 1.98Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

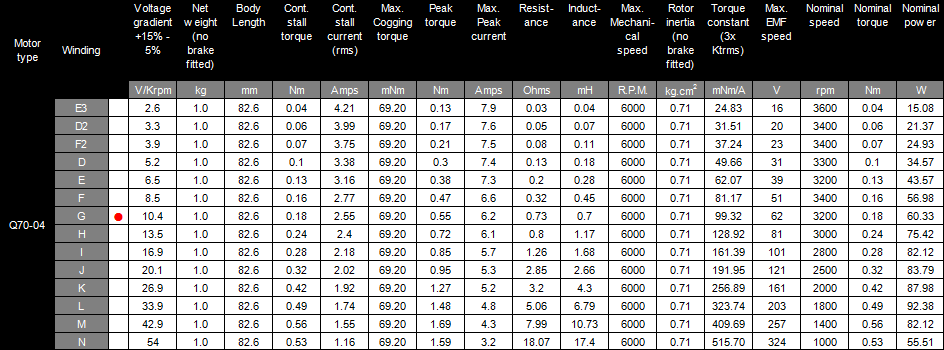

| Q70-04 | 1.0 | 82.6 | 0.49 | 69.20 | 1.48 | 6000 | 0.71 | 92.4 | |

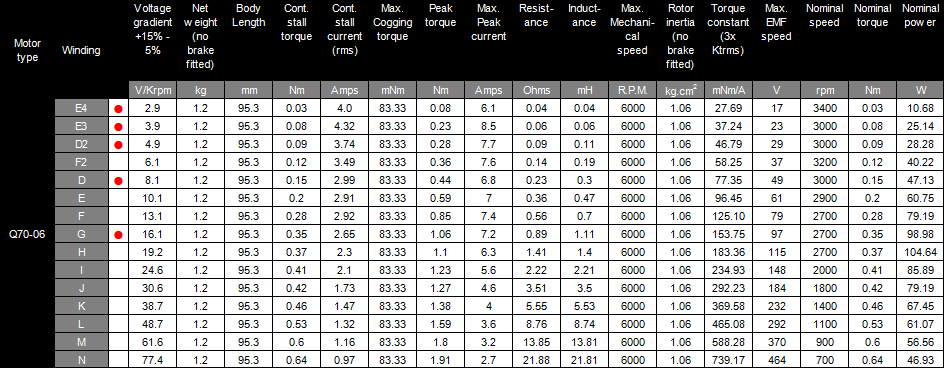

| Q70-06 | 1.2 | 95.3 | 0.37 | 83.88 | 6.3 | 6000 | 1.06 | 104.6 | |
| Q70-08 | 1.8 | 108.0 | 0.67 | 88.27 | 2.01 | 6000 | 1.41 | 119.3 | |

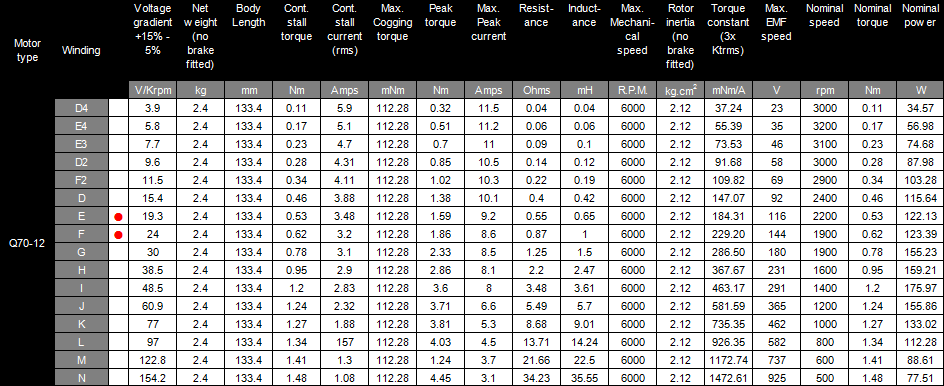

| Q70-12 | 2.4 | 133.4 | 1.2 | 112.28 | 3.6 | 6000 | 2.12 | 176.0 | |
| Q70-16 | 3.2 | 158.9 | 1.41 | 154.65 | 4.24 | 6000 | 2.83 | 206.8 |
