Dimension: 38mm, (NEMA 15)
Continuous Output Power: Max. 178W
Cont. stall torque : Max. 0.25Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor.
| Motor type |
Net weight (no brake fitted) |

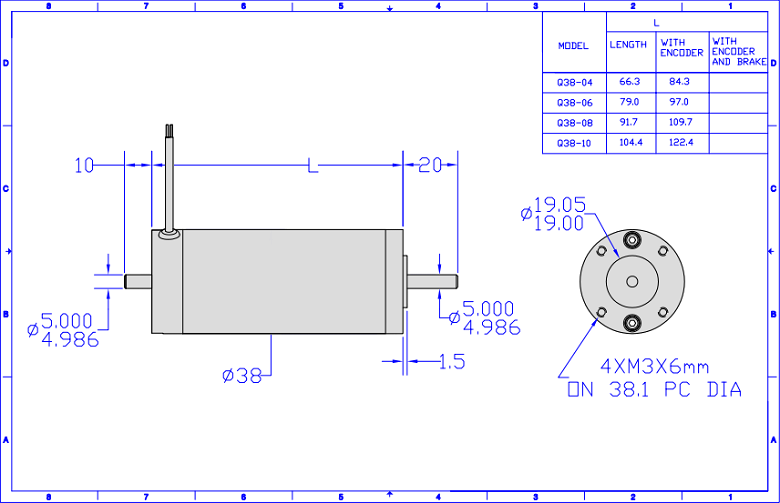

Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||
| Q38-04 | 0.5 | 66.3 | 0.14 | 7.8 | 0.42 | 10000 | 0.02 | 108.5 | |

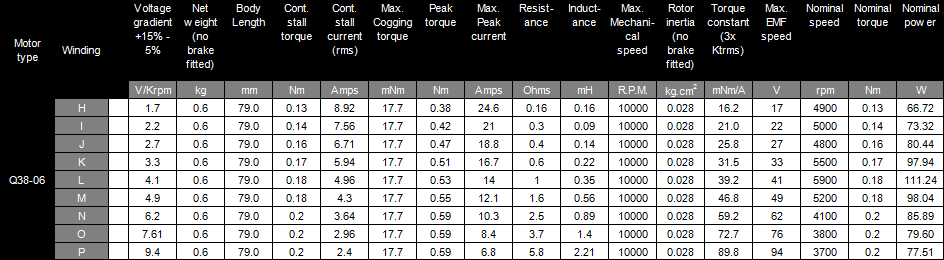

| Q38-06 | 0.6 | 79.0 | 0.18 | 17.7 | 0.53 | 10000 | 0.03 | 111.2 | |

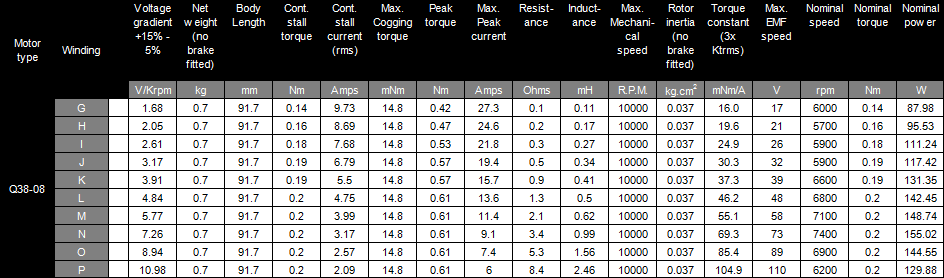

| Q38-08 | 0.7 | 91.7 | 0.2 | 14.8 | 0.61 | 10000 | 0.04 | 155.0 | |

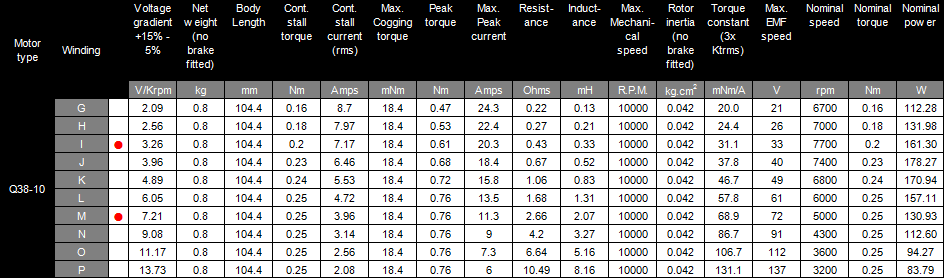

| Q38-10 | 0.8 | 104.4 | 0.23 | 18.4 | 0.68 | 10000 | 0.04 | 178.3 |
