Dimension: 104mm, (NEMA 40)
Continuous Output Power: Max. 1038W
Cont. stall torque : Max. 7.06Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor

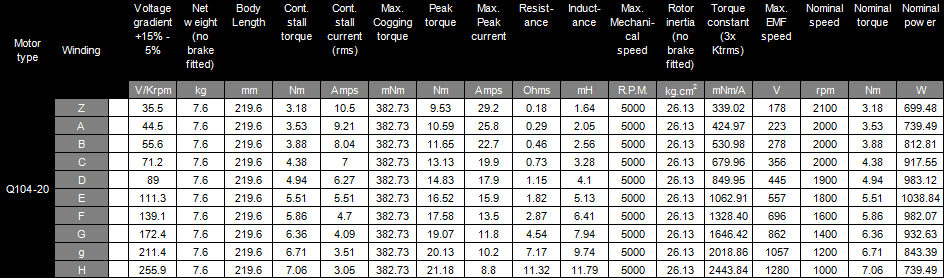

| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||
| Q104-20 | 7.6 | 219.6 | 5.51 | 382.73 | 16.52 | 5000 | 26.13 | 1038.8 |
