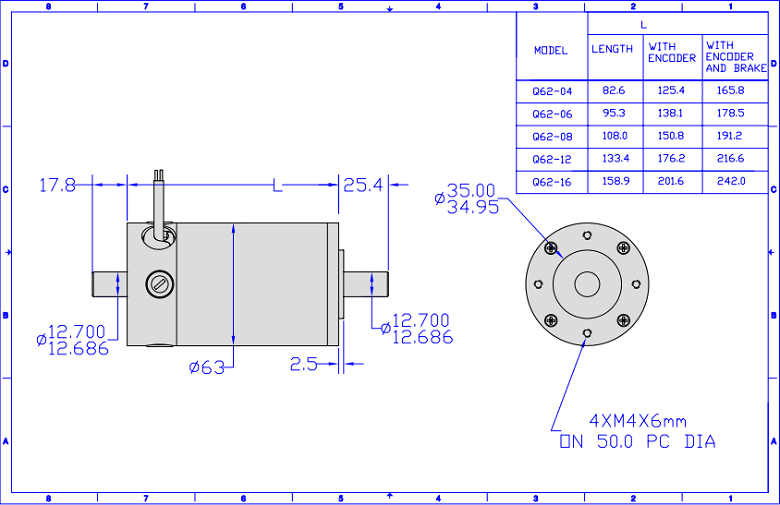

Dimension: 62mm, (NEMA 24).
Continuous Output Power: Max. 382.10W.
Cont. stall torque : Max. 1.15Nm.
Encoder, Tacho, Brake, Gearbox can be added to the motor.
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||
| Q62-04 | 0.9 | 82.6 | 0.59 | 47.31 | 1.43 | 8000 | 0.71 | 183.82 | |
| Q62-06 | 1.2 | 95.3 | 0.61 | 63.55 | 1.50 | 8000 | 1.06 | 201.84 | |
| Q62-08 | 1.5 | 108.0 | 0.76 | 105.92 | 2.05 | 8000 | 1.41 | 222.89 | |

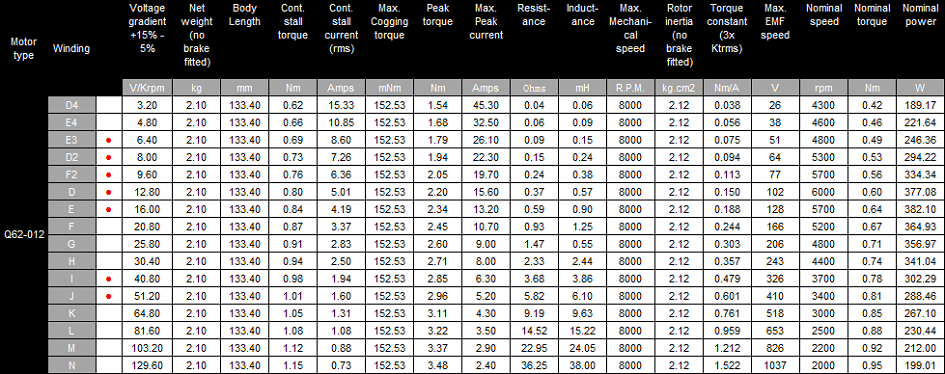

| Q62-12 | 2.1 | 133.4 | 0.84 | 152.53 | 2.34 | 8000 | 2.12 | 382.10 |
