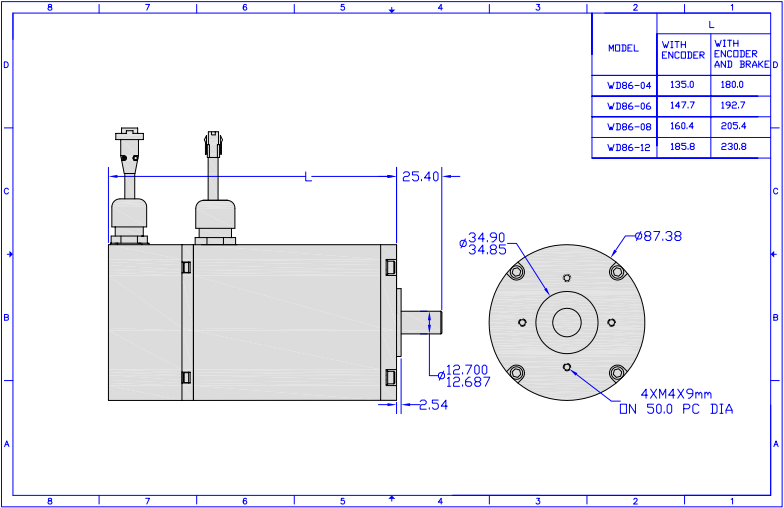

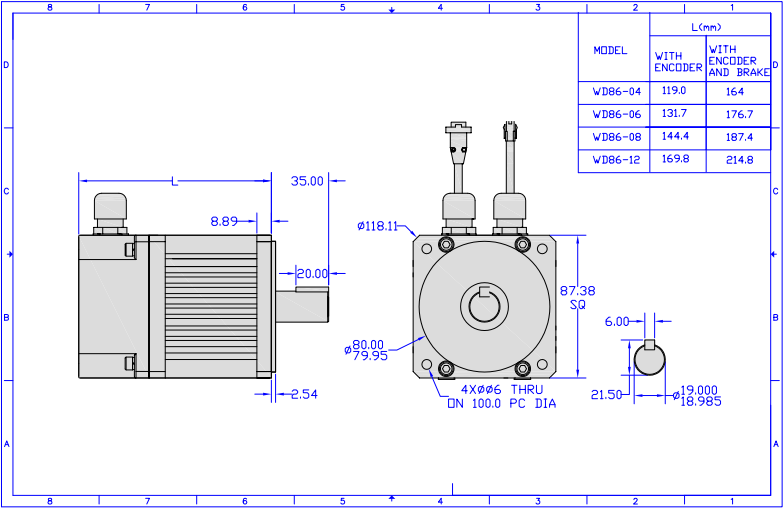

Dimension: 86mm, (NEMA 34)
Continuous Output Power: Max. 1.96kW
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||

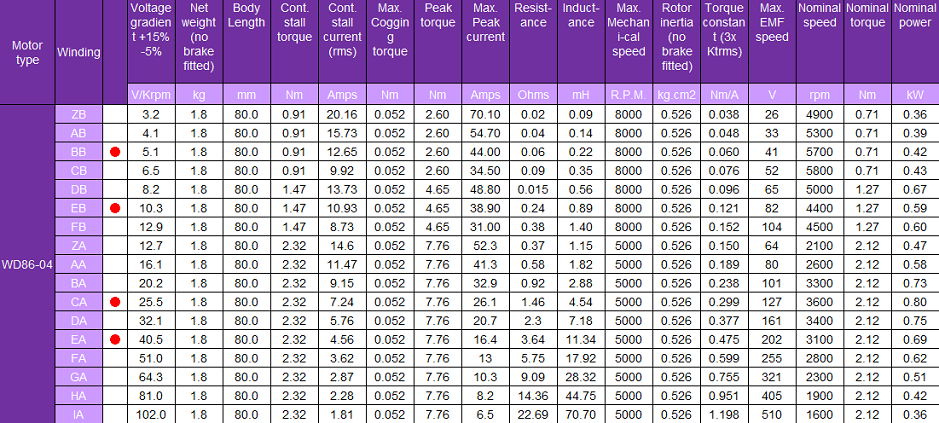

| WD86-04 | 1.8 | 80.0 | 2.32 | 0.052 | 8000 | 0.526 | 0.80 | |
| WD86-06 | 2.2 | 92.7 | 3.38 | 0.078 | 8000 | 0.772 | 0.87 | |

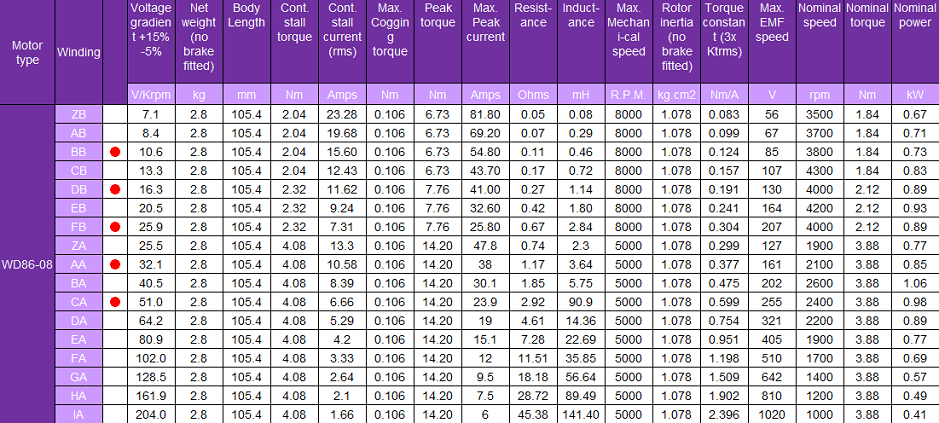

| WD86-08 | 2.8 | 105.4 | 4.08 | 0.106 | 8000 | 1.078 | 1.06 | |
| WD86-10 | 3.4 | 118.1 | 4.79 | 0.131 | 8000 | 1.264 | 1.20 | |

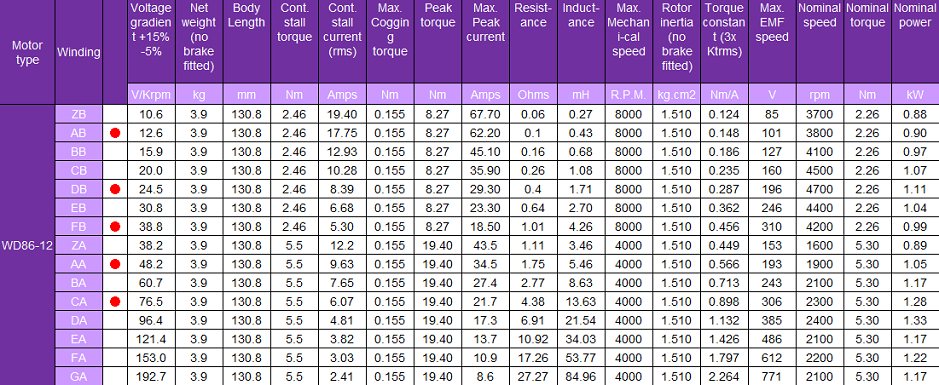

| WD86-12 | 3.9 | 130.8 | 5.5 | 0.155 | 8000 | 1.510 | 1.33 | |

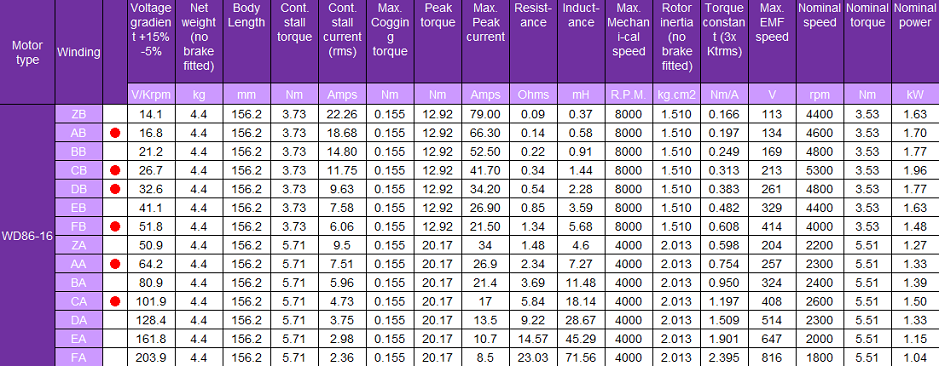

| WD86-16 | 4.4 | 156.2 | 5.71 | 0.155 | 8000 | 1.510 | 1.96 |
