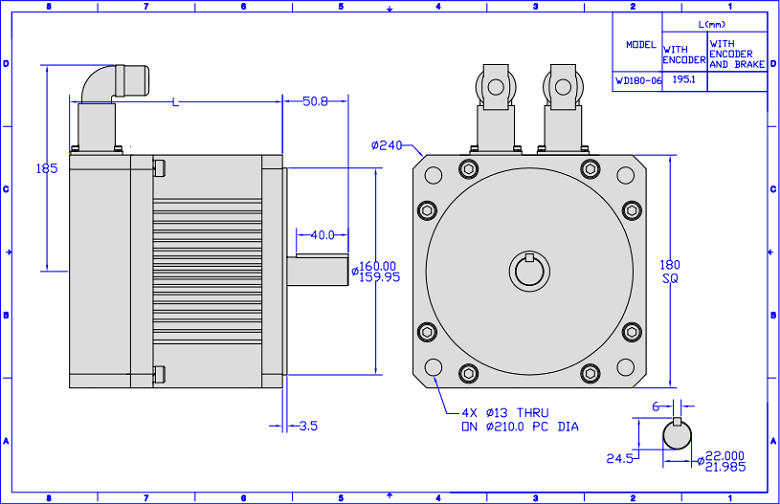

Dimension: 180mm
Continuous Output Power: Max. 12.65kW
Cont. stall torque : Max. 40.45Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | R.P.M. | kg.cm2 | W | ||
| WD180-04 | 7.5 | 139.0 | 27.03 | 0.12 | 4000 | 20.952 | 8430 | |

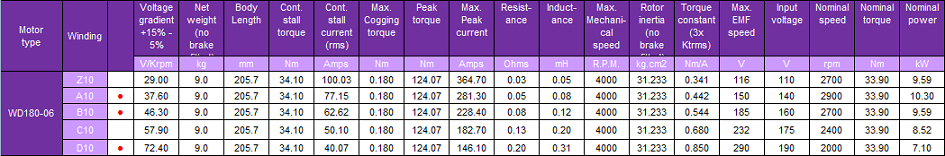

| WD180-06 | 9.0 | 205.7 | 34.10 | 0.18 | 4000 | 31.233 | 10300 | |

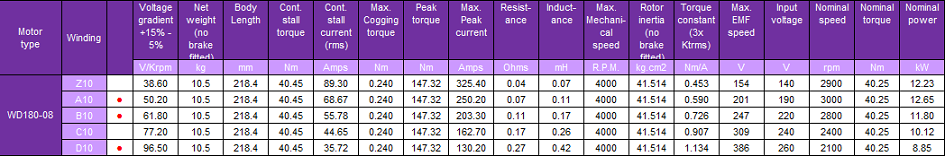

| WD180-08 | 10.5 | 218.4 | 40.45 | 0.24 | 4000 | 41.514 | 12650 |
