Dimension: 86mm, (NEMA 34)
Continuous Output Power: Max. 2.66kW
Cont. stall torque : Max. 5.70Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||
| W86-06 | 2.1 | 146.1 | 1.9 | 0.114 | 6.73 | 6000 | 0.466 | 0.79 | |
| W86-08 | 2.6 | 158.8 | 2.7 | 0.088 | 9.81 | 6000 | 0.621 | 1.24 | |

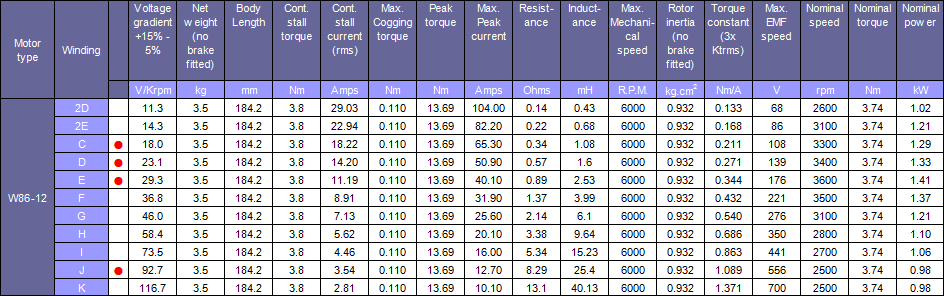

| W86-12 | 3.5 | 184.2 | 3.8 | 0.110 | 13.69 | 6000 | 0.932 | 1.41 | |

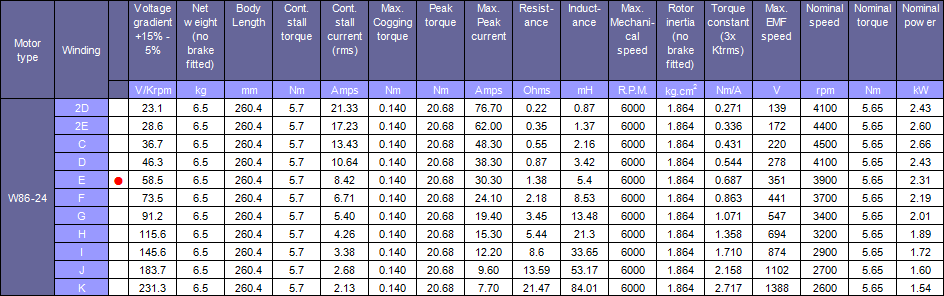

| W86-24 | 6.5 | 260.4 | 5.7 | 0.140 | 20.68 | 6000 | 1.864 | 2.66 |
