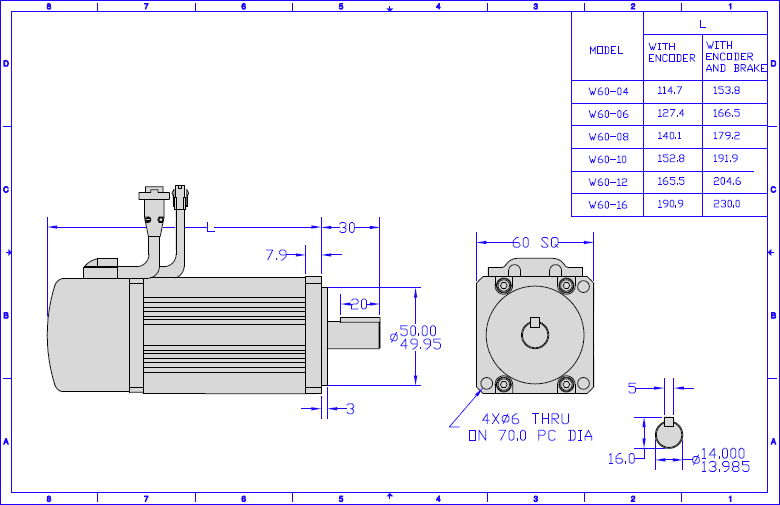

Dimension: 60mm, (NEMA 24)
Continuous Output Power: Max. 0.80kW
Cont. stall torque : Max. 1.72Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||

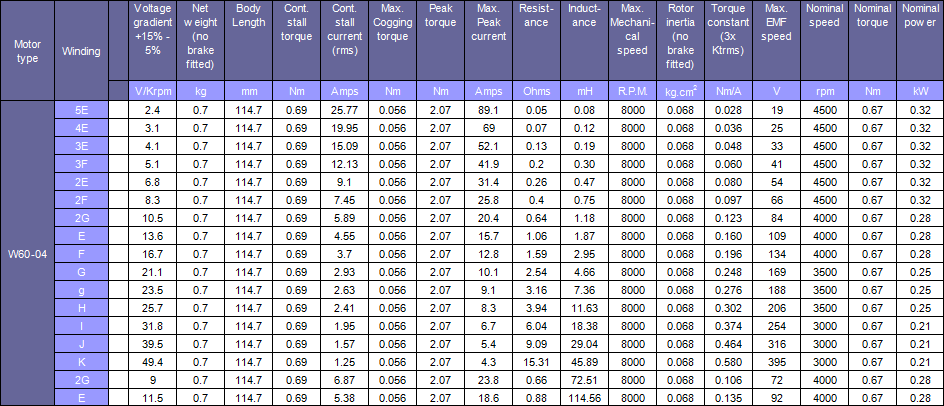

| W60-04 | 0.7 | 114.7 | 0.69 | 0.056 | 2.07 | 8000 | 0.068 | 0.32 | |

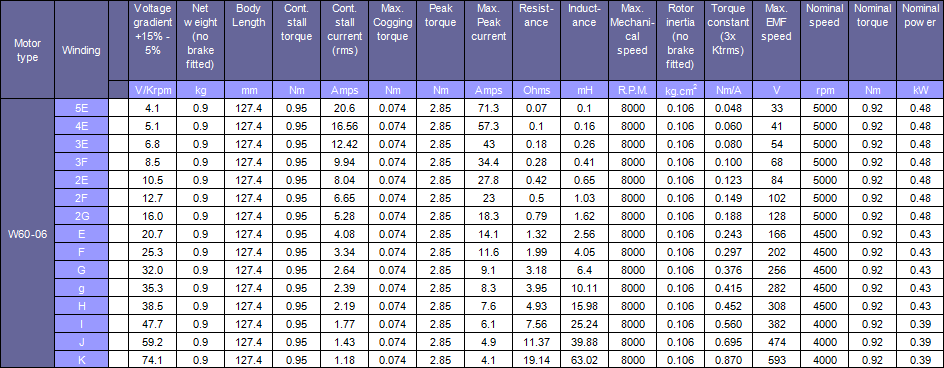

| W60-06 | 0.9 | 127.4 | 0.95 | 0.074 | 2.85 | 8000 | 0.106 | 0.48 | |
| W60-08 | 1.2 | 140.1 | 1.2 | 0.081 | 3.6 | 8000 | 0.144 | 0.59 | |
| W60-12 | 1.5 | 165.5 | 1.45 | 0.108 | 4.35 | 8000 | 0.212 | 0.74 | |
| W60-16 | 1.8 | 190.9 | 1.72 | 0.135 | 5.16 | 8000 | 0.263 | 0.80 |
