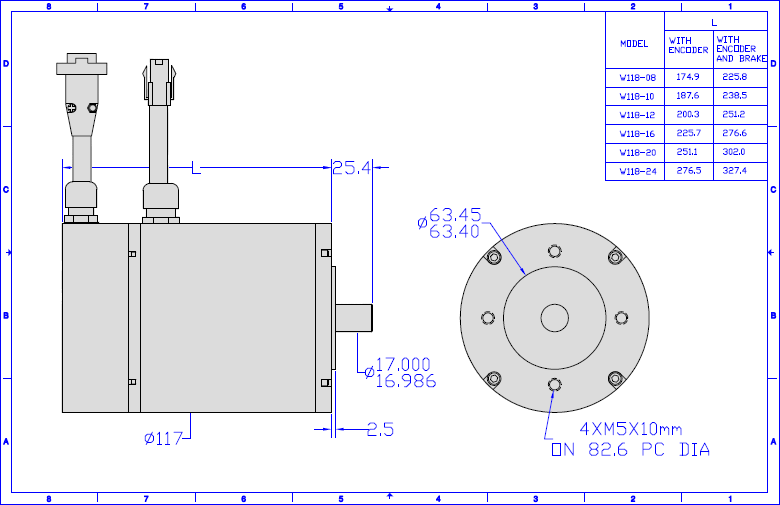

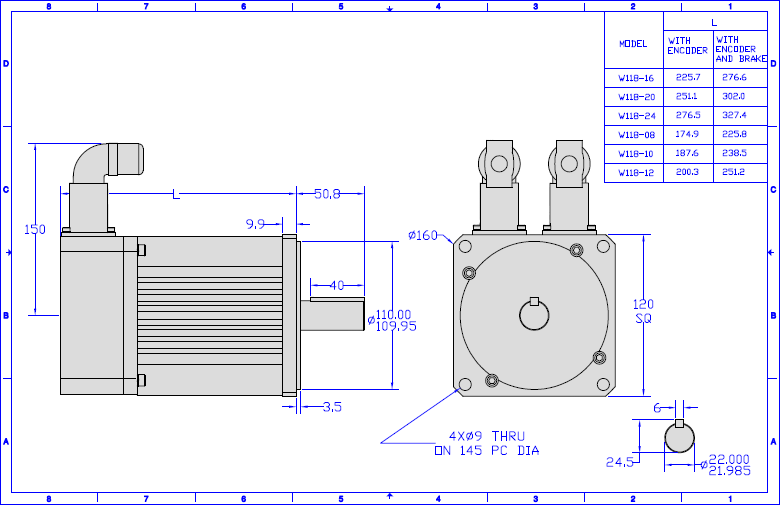

Dimension: 118mm, (NEMA 46)
Continuous Output Power: Max. 6.52kW
Cont. stall torque : Max. 17.20Nm
Encoder, Tacho, Brake, Gearbox can be added to the motor
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||
| W118-08 | 5.8 | 174.9 | 5.1 | 0.126 | 18.59 | 6000 | 2.895 | 2.50 | |

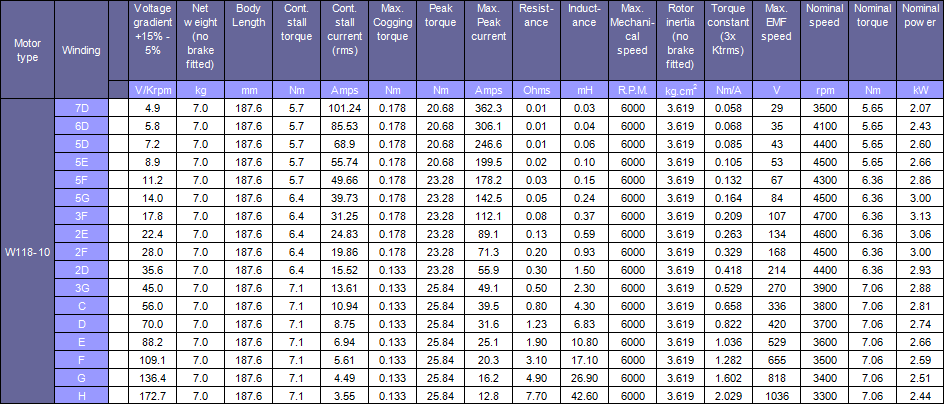

| W118-10 | 7.0 | 187.6 | 6.4 | 0.178 | 23.28 | 6000 | 3.619 | 3.06 | |
| W118-12 | 8.3 | 200.3 | 8.5 | 0.179 | 31 | 6000 | 4.378 | 3.73 | |
| W118-20 | 9.6 | 251.1 | 11.5 | 0.223 | 41.36 | 6000 | 7.203 | 5.56 | |
| W118-24 | 12.0 | 276.5 | 15 | 0.244 | 54.28 | 6000 | 8.615 | 6.52 |
