连续输出功率: 最大 296W
连续堵转扭矩: 最大 1.73Nm
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |

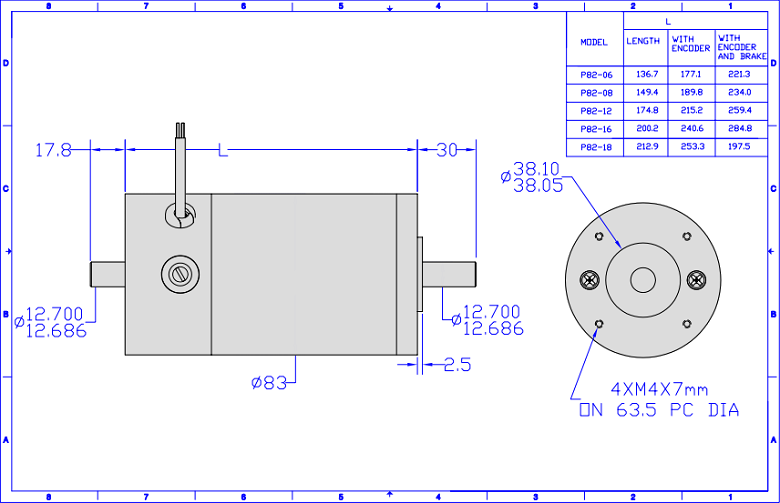

Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

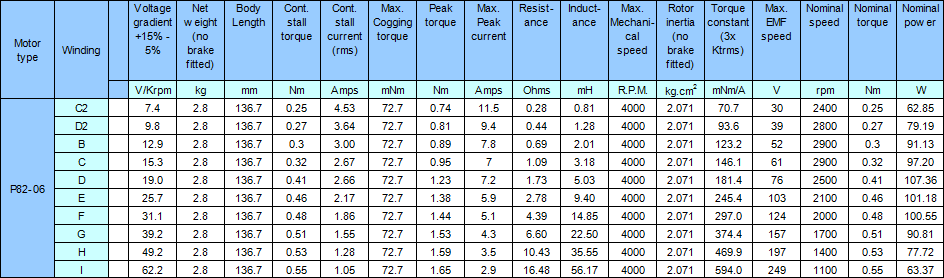

| P82-06 | 2.8 | 136.7 | 0.41 | 72.7 | 1.23 | 4000 | 2.07 | 107.4 | |

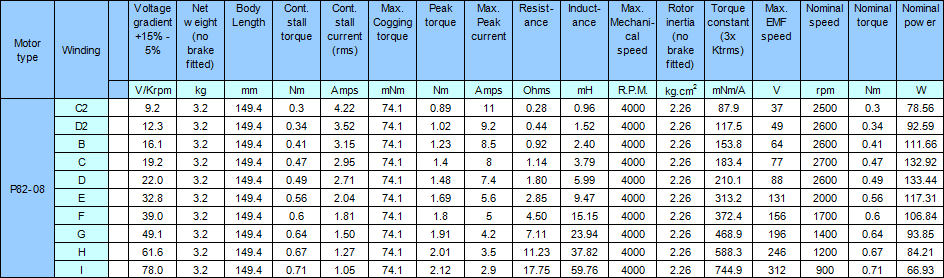

| P82-08 | 3.2 | 149.4 | 0.49 | 74.1 | 1.48 | 4000 | 2.26 | 133.4 | |

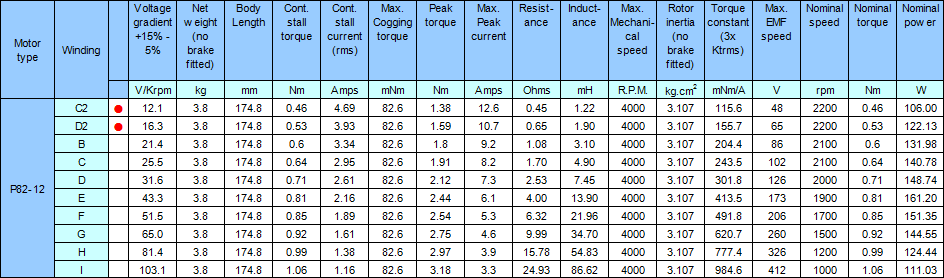

| P82-12 | 3.8 | 174.8 | 0.81 | 82.6 | 2.44 | 4000 | 3.11 | 161.2 | |

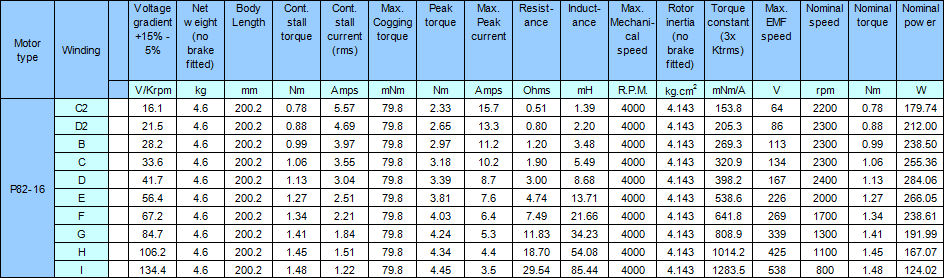

| P82-16 | 4.6 | 200.2 | 1.13 | 79.8 | 3.39 | 4000 | 4.14 | 284.1 | |

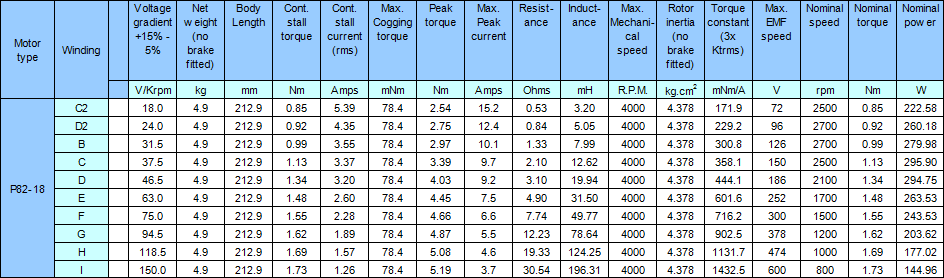

| P82-18 | 4.9 | 212.9 | 1.13 | 78.4 | 3.39 | 4000 | 4.38 | 295.9 |
