连续输出功率: 最大0.65kW
连续堵转扭矩: 最大1.6Nm
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |

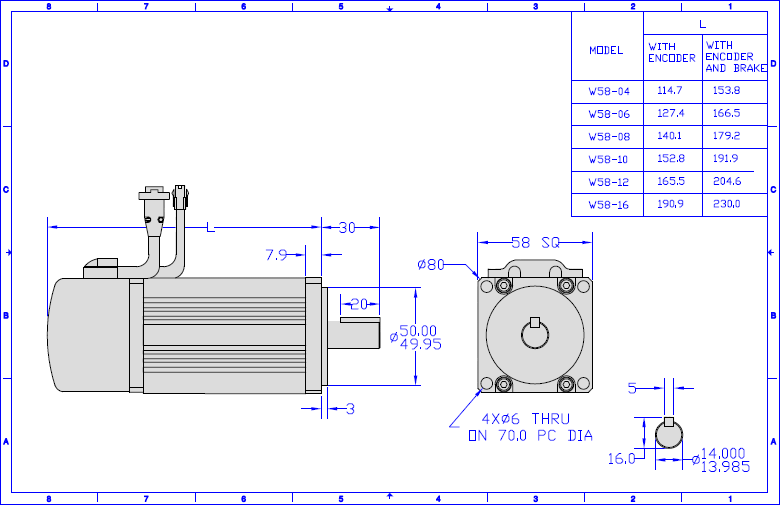

Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||

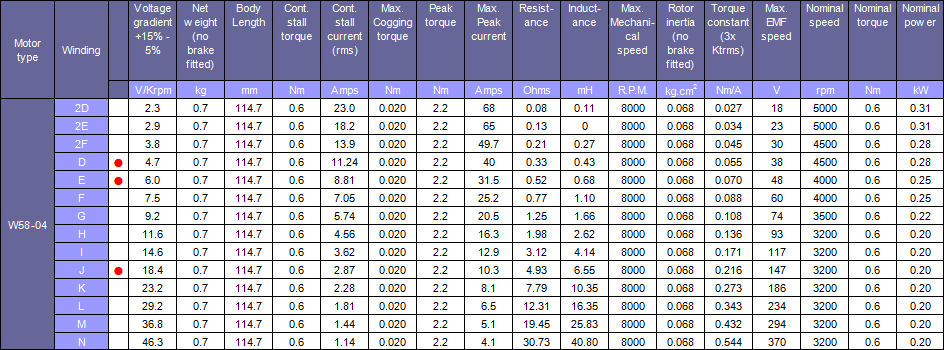

| W58-04 | 0.7 | 114.7 | 0.6 | 0.020 | 2.2 | 8000 | 0.068 | 0.31 | |

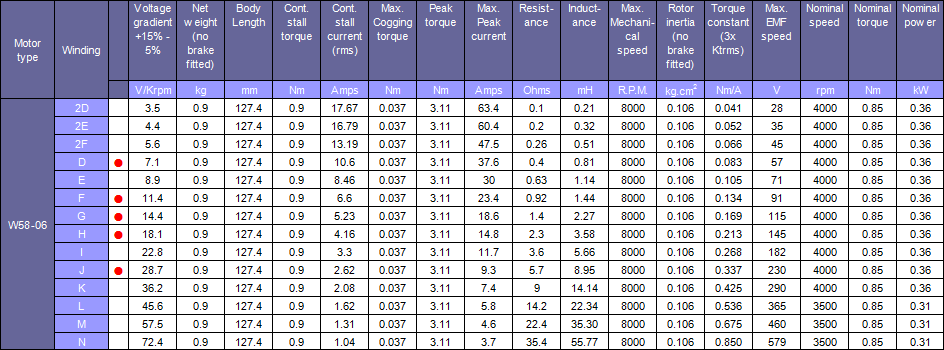

| W58-06 | 0.9 | 127.4 | 0.9 | 0.037 | 3.11 | 8000 | 0.106 | 0.36 | |

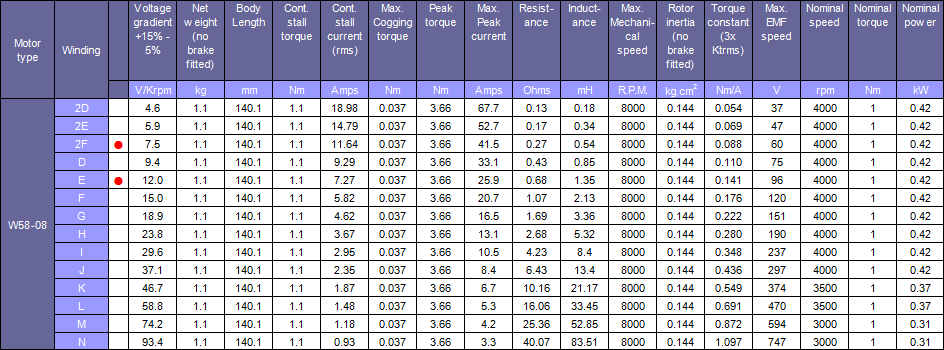

| W58-08 | 1.1 | 140.1 | 1.1 | 0.037 | 3.66 | 8000 | 0.144 | 0.42 | |

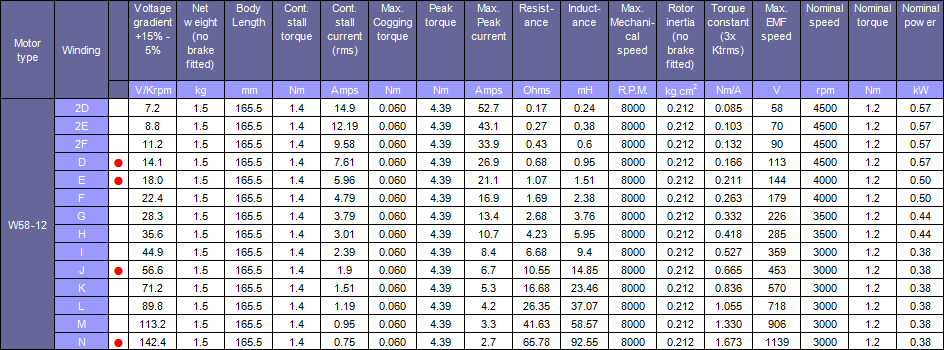

| W58-12 | 1.5 | 165.5 | 1.4 | 0.060 | 4.39 | 8000 | 0.212 | 0.57 | |

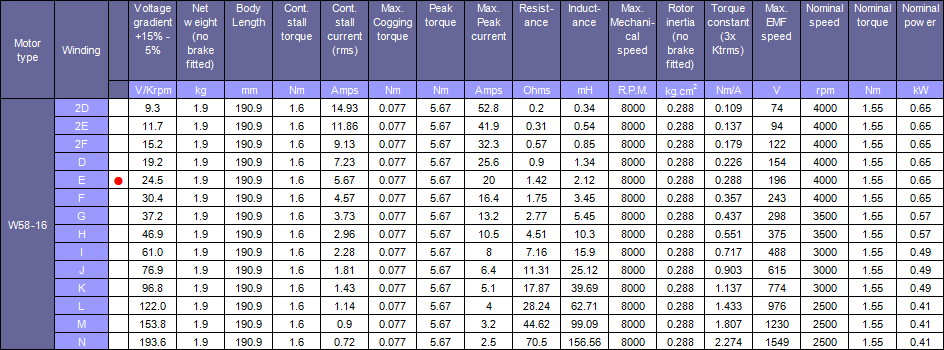

| W58-16 | 1.9 | 190.9 | 1.6 | 0.077 | 5.67 | 8000 | 0.288 | 0.65 |
