连续输出功率: 最大7.65kW
连续堵转扭矩: 最大 24.90Nm
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |
Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | Nm | Nm | R.P.M. | kg.cm2 | KW | ||
| W142-12 | 15.0 | 238.3 | 15.7 | 0.361 | 56.8 | 4000 | 20.100 | 4.72 | |

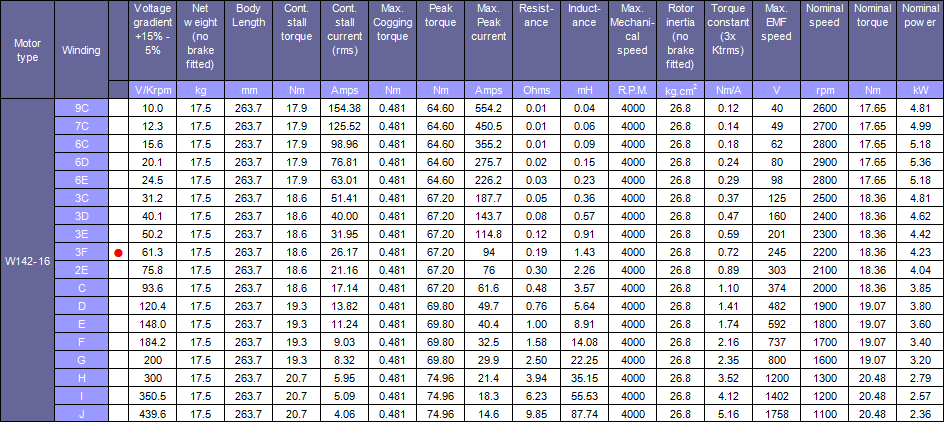

| W142-16 | 17.5 | 263.7 | 17.9 | 0.481 | 64.6 | 4000 | 26.800 | 5.36 | |

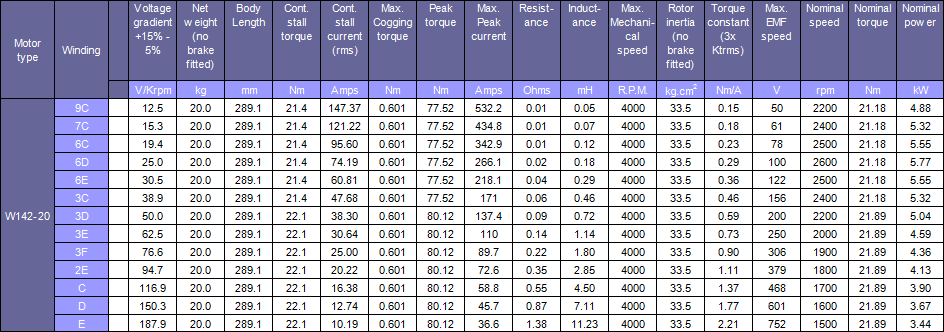

| W142-20 | 20.0 | 289.1 | 21.4 | 0.601 | 77.52 | 4000 | 33.500 | 5.77 | |
| W142-24 | 22.5 | 314.5 | 22.4 | 0.601 | 81.4 | 4000 | 40.200 | 6.52 | |

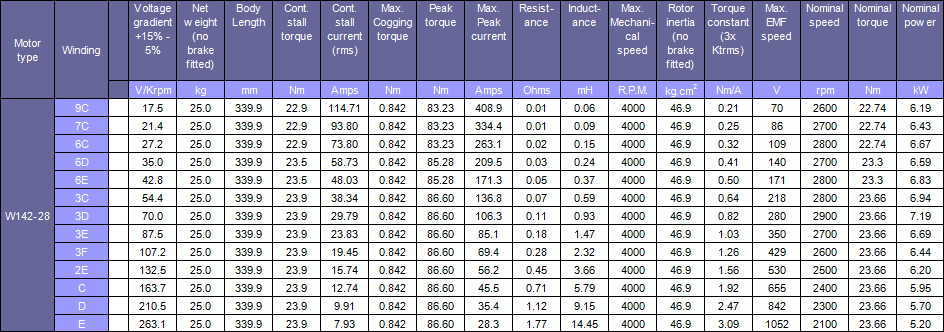

| W142-28 | 25.0 | 339.9 | 23.9 | 0.601 | 86.6 | 4000 | 46.900 | 7.19 | |

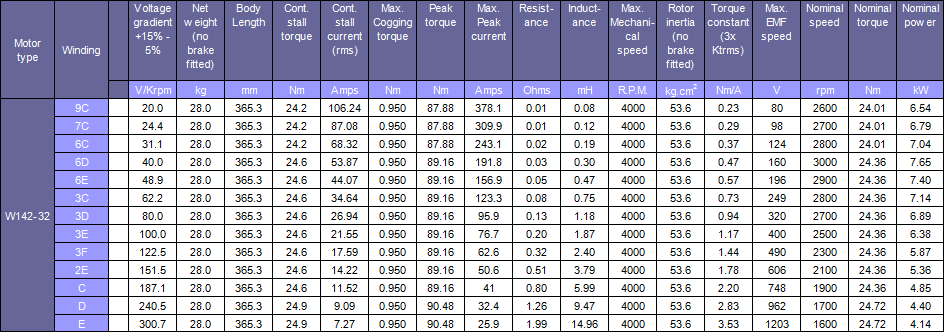

| W142-32 | 28.0 | 365.3 | 24.6 | 0.950 | 89.16 | 4000 | 53.600 | 7.65 |
