连续输出功率: 最大96.4W
连续堵转扭矩: 最大0.74Nm/p>
电机可以安装编码器、测速机、抱闸、减速机。
| Motor type |
Net weight (no brake fitted) |

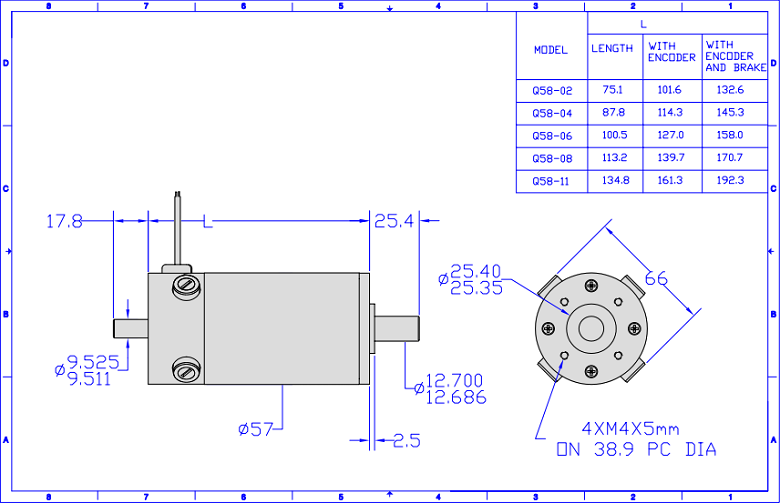

Body Length |
Cont. stall torque |
Max. Cogging torque |
Peak torque |
Max. Mechani- cal speed |
Rotor inertia (no brake fitted) |
Max. power |
Details |
|---|---|---|---|---|---|---|---|---|---|
| kg | mm | Nm | mNm | Nm | R.P.M. | kg.cm2 | W | ||

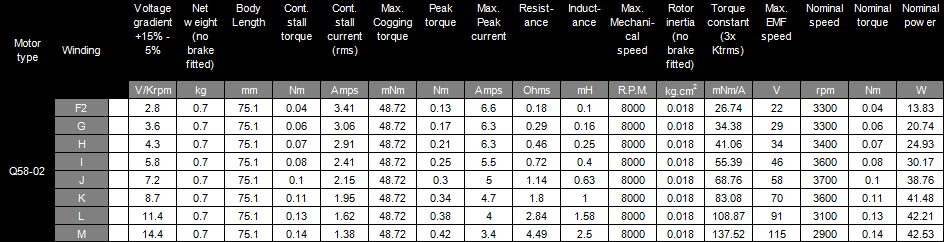

| Q58-02 | 0.7 | 75.1 | 0.14 | 48.72 | 0.42 | 8000 | 0.02 | 42.5 | |

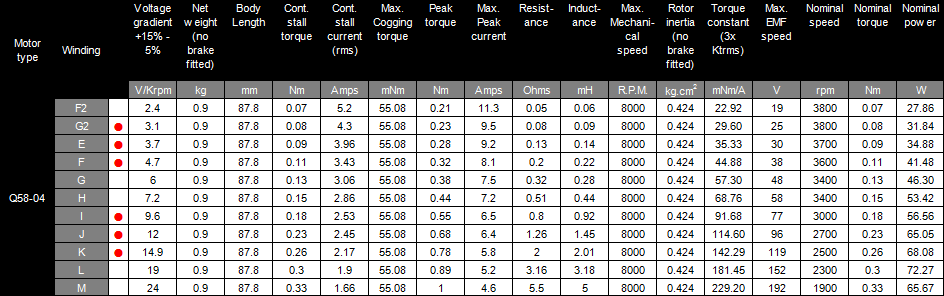

| Q58-04 | 0.9 | 87.8 | 0.3 | 55.08 | 0.89 | 8000 | 0.42 | 72.3 | |
| Q58-06 | 1.1 | 100.5 | 0.44 | 55.79 | 1.31 | 8000 | 0.53 | 78.4 | |

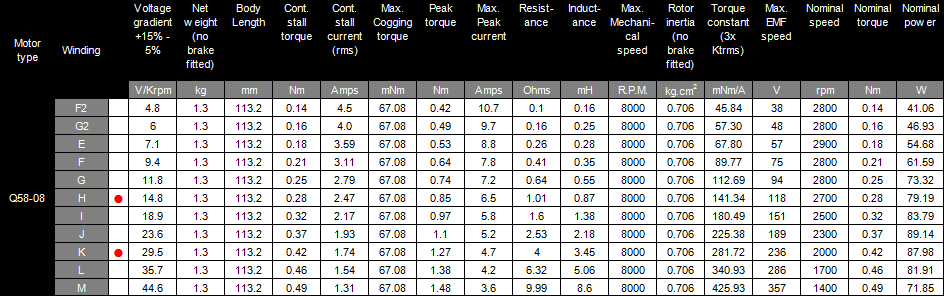

| Q58-08 | 1.3 | 113.2 | 0.37 | 67.08 | 1.1 | 8000 | 0.71 | 89.1 | |
| Q58-11 | 1.7 | 134.8 | 0.46 | 83.33 | 1.38 | 8000 | 0.99 | 96.4 |
